ER11 Collet

ER11 Collet

ER collets are used for holding cylindrical shank tools without flats. These collets do not have coolant through capabilities. Mainly has ER8 ,ER11,ER16,ER20,ER25,ER32,ER40 size.

Product Specifications er11 collet:

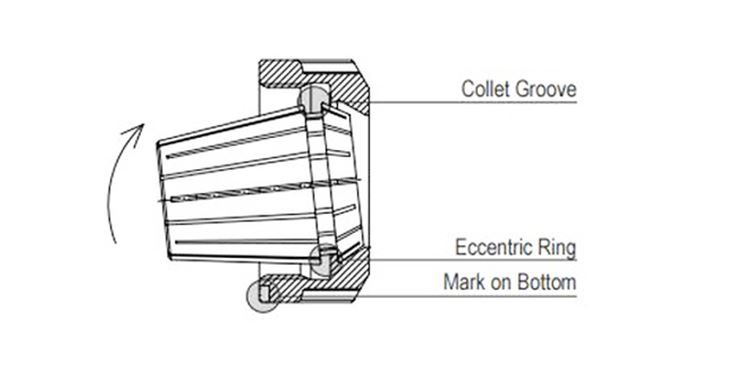

Assembling Collet

Insert groove of collet into eccentric ring of the clamping nut at the mark on the bottom of the nut. Push collet in the direction of the arrow until it clicks in place. Screw nut with collet onto tool holder. We recommend tightening the nut with a torque wrench.

Disassembling Collet

After the nut is unscrewed from the toolholder, press on the face of the collet while simultaneously pushing sideways on the back of the collet opposite the mark until it disengages from the clamping nut.

Features of er11 collet :

1.0.005mm-0.015mm Accuracy CNC Spring ER11 ER16 ER20 ER25 ER32 ER40 ER50 Collet is made of high quality 65Mn material, with hardness of HRC45-48. We produce alll size of 1mm-13mm ERcollets, and full range of ER8, ER11, ER16, ER20, ER25, ER32, ER40, ER50 collets.

2. 65Mn which guarantee the source of high quality product.

3. Advanced production equipment and strict testing procedure that ensure all output should be achieve inner and outer

standard.

Related Products of er11 collet：

Company Introduction:

We are focus on producing cemented carbide burrs ,carbide inserts ,carbide drills and carbide end mills ,ER collets ,cnc er chuck collet over 10years . We also supply cnc toolholder as well as famous brand products like korloy ,mitsubishi ,sumitomo ,seco ,sandvik .

Workshop:

We use ANCA and Walter machines to produce all carbide tools .

Quality Control and Warehouse :

Package and Shipping :

FAQ :
