Er32 Collet Sizes
Er32 Collet Sizes
We are professional manufacturer for producing ER16 ,ER20,ER25,ER32,ER40,ER50 collets both in inch size and metric size . ER32 collet sizes included from diameter 3mm-20mm in one set .
Description
Er32 Collet Sizes
We are professional manufacturer for producing ER16 ,ER20,ER25,ER32,ER40,ER50 collets both in inch size and metric size . ER32 collet sizes included from diameter 3mm-20mm in one set . SET-ER16 ,SET-ER25,SET-ER32,SET-ER40 are the most popular sets . The standard er32 collet sizes is the most widely used clamping tool in the world. ER32 series collets have a capacity of .02-.787 inches. Each ER32 collet has a range of .039 inches(1mm). ER32 Collets .094 and smaller have a range of only .015 inches .
Made from Alloy spring steel and fully hardened,the ER collets are ideal for many machining applications including boring, milling, reaming, tapping and grinding.
Features
1) Runout of our ER collet are within 0.005mm-0.015mmm
2) ER8, ER11, ER16, ER20, ER25, ER32, ER40 and ER50 collet
3) Made of high quality steel:65Mn
4) Packing: Inner packing is plastic or paper box,the outer packing is cartons.
5) We normally supply two kinds of accuracy: First accuracy 0.008mm, second accuracy 0.015mm. The highest accuracy is 0.005mm.
6) Inspection: 100% collet inspection.
Descriptions
Code | Nominal | Clamping |
ER32-D2mm | 2mm | 1.5-2.0 |
ER32-D2.5mm | 2.5mm | 2.0-2.5 |
ER32-D3.0mm | 3mm | 2.0-3.0 |
ER32-D3.5mm | 3.5mm | 3.0-3.5 |
ER32-D4.0mm | 4mm | 3.0-4.0 |
ER32-D5.0mm | 5mm | 4.0-5.0 |
ER32-D6.0mm | 6mm | 5.0-6.0 |
ER32-D7.0mm | 7mm | 6.0-7.0 |
ER32-D8.0mm | 8mm | 7.0-8.0 |
ER32-D9.0mm | 9mm | 8.0-9.0 |
ER32-D10.0mm | 10mm | 9.0-10.0 |
ER32-D11.0mm | 11mm | 10.0-11.0 |
ER32-D12.0mm | 12mm | 11.0-12.0 |
ER32-D13.0mm | 13mm | 12.0-13.0 |
ER32-D14.0mm | 14mm | 13.0-14.0 |
ER32-D15.0mm | 15mm | 14.0-15.0 |
ER32-D16.0mm | 16mm | 15.0-16.0 |
ER32-D17.0mm | 17mm | 16.0-17.0 |
ER32-D18.0mm | 18mm | 17.0-18.0 |
ER32-D19.0mm | 19mm | 18.0-19.0 |
ER32-D20.0mm | 20mm | 19.0-20.0 |
SET-ER32 in aluminum box for one set includes from diameter D3.0mm to D20.00mm totally 18pcs .
Metric Size
Inch Size
Size | d | D1 | D | D2 | L |
ER11 | 1/32-17/64 | 11 | 11.5 | 9.5 | 18 |
ER16 | 1/32-3/8 | 16 | 17 | 13.8 | 27.5 |
ER20 | 1/32-33/64 | 20 | 21 | 17.4 | 31.5 |
ER25 | 3/64-5/8 | 25 | 26 | 22 | 34 |
ER32 | 1/16-25/32 | 32 | 33 | 29.2 | 40 |
ER40 | 1/8-1'' | 40 | 41 | 36.2 | 46 |

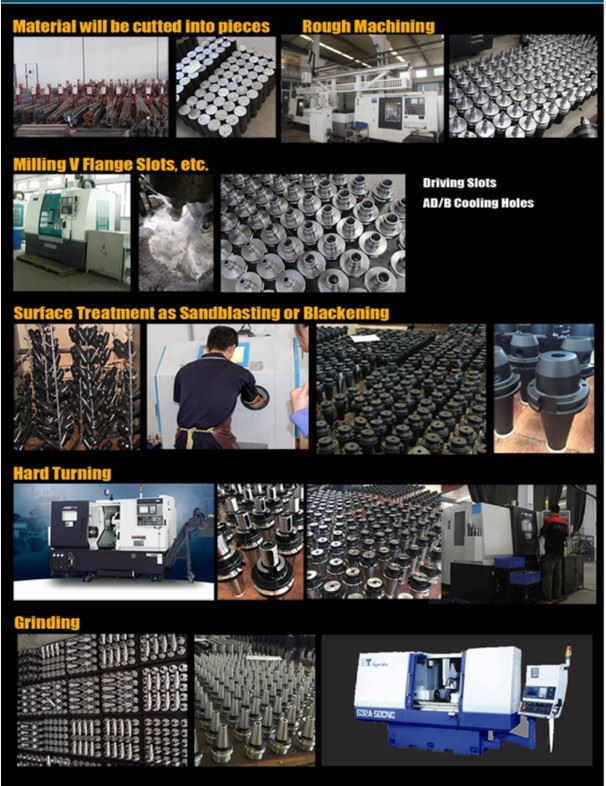

Production process of er32 collet sizes :
Cutoutil Hardware Tools Co.,LtD is a professional company specialized in cutting tools ,Diamond tools,Machine Accessories and measuring tools .
The scope of main products included turning tools milling tools, Carbide End Mills,Carbide Ball End Mills and carbide burrs ,Carbide Drills & milling cutter ,carbide inserts and ER collets ,chucks ,er32 collet sizes.
Related products :
Shipping :
-The items will be shipped out within 3-7days after received your payment .
-We usually ship items via DHL ,TNT, Fedex, UPS , Airmail,ePacket ,EMS ,china Post. Air Mail.
