WDX Flat-Bottom Drills With WDX Inserts (Diameter 15-30 Mm)

WDX Flat-Bottom Drills With WDX Inserts (Diameter 15-30 Mm)

Discover our WDX Flat-Bottom Drills with WDX Inserts (Diameter 15-30 mm) in our own factory, offering both ZCC and world-brand equivalents for superior performance and reliability.

Send Inquiry

Description

WDX Flat-Bottom Drills with WDX Inserts (Diameter 15-30 mm)

product-885-173

Precision WDX Flat-Bottom Drills (15-30 mm Diameter) with High-Performance WDX Inserts

High-Precision Drilling: Designed for accurate and clean hole-making in various materials.
Flat Bottom Design: Ensures a perfectly flat bottom in drilled holes, ideal for countersinking and other precision applications.
Durable WDX Inserts: Made from advanced tungsten carbide for exceptional wear resistance and longer tool life.
Wide Diameter Range (15-30 mm): Suitable for a variety of industrial and manufacturing needs.
Versatile Applications: Perfect for use in automotive, aerospace, and general machining industries.
Easy Insert Replacement: Quick and simple insert changes minimize downtime and maximize productivity.

Diameter (Dc) Shank (Ds) Model Store L l1 l2 l3

Applicable Insert

 Weight (kg)
15 20 PDL150D2S20 ● 92 33 48 - WDXT042004 0.2
16   PDL160D2S20 ● 94 35 50 - WDXT042004 0.2
17   PDL170D2S20 ● 96 37 52 - WDXT042004 0.2
18 25 PDL180D2S25 ● 112 39 56 - WDXT052504 0.3
19   PDL190D2S25 ● 114 41 58 - WDXT052504 0.3
20   PDL200D2S25 ● 116 43 60 - WDXT052504 0.3
21   PDL210D2S25 ● 118 45 62 - WDXT052504 0.3
22   PDL220D2S25 ● 120 47 64 - WDXT063006 0.4
23   PDL230D2S25 ● 122 49 66 - WDXT063006 0.4
24   PDL240D2S25 ● 124 51 68 - WDXT063006 0.4
25   PDL250D2S25 ● 126 53 70 - WDXT063006 0.4
26 32 PDL260D2S32 ● 135 55 75 - WDXT073506 0.6
27   PDL270D2S32 ● 137 57 77 - WDXT073506 0.6
28   PDL280D2S32 ● 139 59 79 - WDXT073506 0.7
29   PDL290D2S32 ● 143 62 83 - WDXT073506 0.7
30   PDL300D2S32 ● 148 64 88 - WDXT073506 0.7
31   PDL310D2S32 ○ 150 66 90 - WDXT094008 0.8
32   PDL320D2S32 ○ 152 68 92 - WDXT094008 0.8
33   PDL330D2S32 ○ 154 70 94 - WDXT094008 0.8
34   PDL340D2S32 ○ 156 72 96 - WDXT094008 0.8
35   PDL350D2S32 ○ 158 74 98 - WDXT094008 0.8



product-949-353

Usage Notes

PDL Type: Both the outer and inner edges of the insert can be used. However, an insert used as an outer edge cannot be used as an inner edge, and vice versa.

PCT Type: Only the outer edge is used, with two cutting tips.

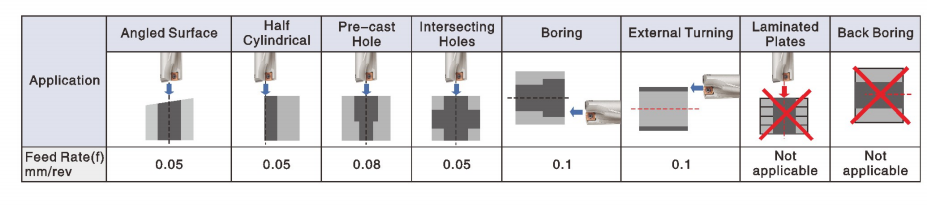

product-927-207
