Tool Holder Pull Stud
1.Product Name :tool holder pull stud
2.Accurancy :0.005
3.Material :20crmoti
4.Colour :Silver or black
Description

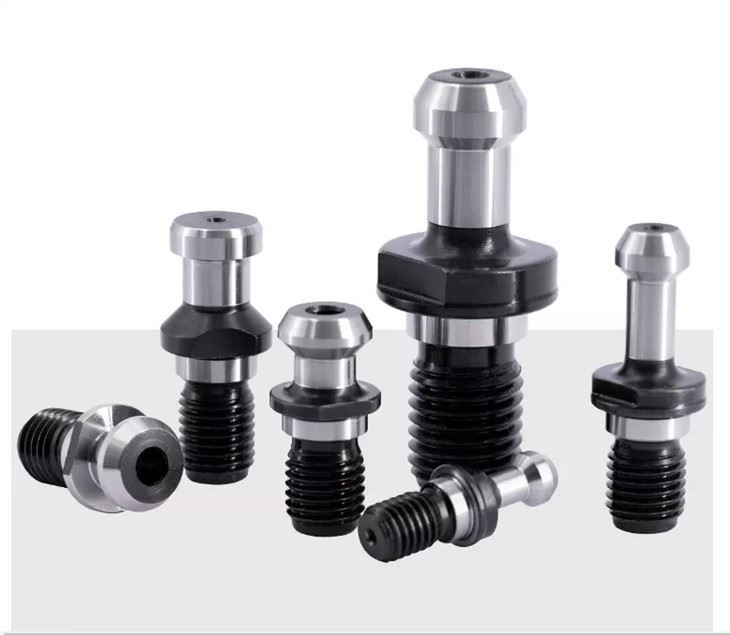

Tool Holder Pull Stud
Specifications of tool holder pull stud :
Precision Process
Through hole drainage, low hardness of thread and other parts :35+5HRC,Protect the shank thread,and the core hardness can resist impact
1. MAS BT30 Retention knobs for BT30 Tool Holders
2. Works on all BT 30 machines
3. For MAS BT30 Spindles
4. Threaded is M12 X1.5
5. All critical surfaces precision ground
6. Made from alloy steel hardened to 54 – 56rc
7. Thru twice heat treatment of each pull stud
8. Angle degree have 45,60 and 90 available
9. Concentricity is less than .0005 at collet face
10. Coolant available
11. Rear thread for pull stud is M12x1.5
12. Oxide black
| Item | ANSI/ASME B5.50-1985 RETENTION KNOB | |||||||
| Order No. | D1 | D2 | M | L | L1 | L2 | H | H1 |
| LDA-30 | 9.78 | 13.21 | 1/2"-13 | 27.94 | 11.68 | 8.13 | 2.54 | 1.01 |
| LDA-40 | 12.45 | 18.80 | 5/8"-11 | 38.10 | 16.26 | 11.18 | 3.05 | 1.52 |
| LDA-45 | 15.37 | 23.88 | 3/4"-10 | 45.72 | 20.83 | 14.73 | 4.06 | 2.03 |
| LDA-50 | 20.83 | 28.96 | 1"-8 | 58.42 | 25.4 | 17.78 | 5.08 | 2.54 |
