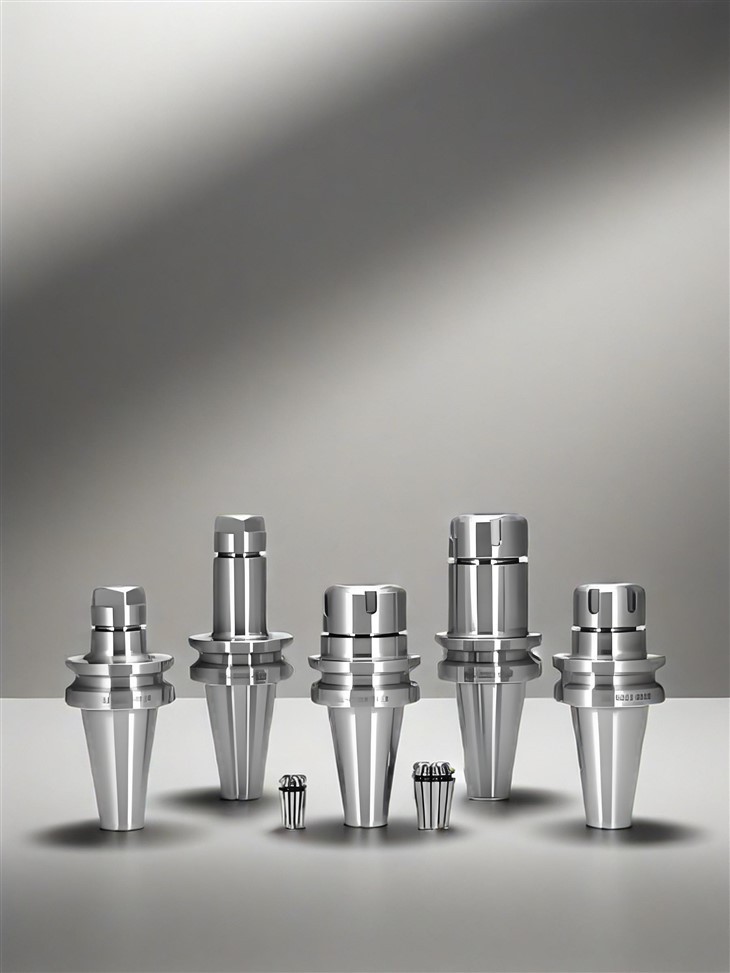

SK40 & ER11 Collet Chuck Series- Precision Tooling for High-Performance Machining

In the realm of precision engineering and CNC machining, the SK40 & ER11 Collet Chuck series stands as a testament to our commitment to excellence in manufacturing tooling systems. These collet chucks are specifically designed to meet the most demanding requirements of modern machining processes, providing exceptional accuracy, durability, and versatility.



The SK40 & ER11 Collet Chuck series offers a comprehensive range of collet chucks to suit various machining applications. Each model combines the benefits of high-quality construction with advanced design features, ensuring optimal performance and reliability in CNC machining centers. Whether you are working with small precision components or larger workpieces, this series provides the perfect solution for secure and accurate clamping.

Part No.	L	Ø D	Ø d Clamping range
SK40-ER11-100	100	19	2.5 ~ 7
SK40-ER16-60	60	30	2.0 ~ 10
SK40-ER16-100	100
SK40-ER16-150	150
SK40-ER20-60	60	34	2.0 ~ 13
SK40-ER20-100	100
SK40-ER20-120	120
SK40-ER20-150	150
SK40-ER25-60	60	42	2.0 ~ 16
SK40-ER25-100	100
SK40-ER25-150	150
SK40-ER32-70	70	50	2.0 ~ 20
SK40-ER32-100	100
SK40-ER32-150	150
SK40-ER40-80	80	63	3.0 ~ 26
SK40-ER40-100	100
SK40-ER40-150	150
SK50-ER16-60	60	30	2.0 ~ 10
SK50-ER16-100	100
SK50-ER16-150	150
SK50-ER20-100	100	34	2.0 ~ 13
SK50-ER20-150	150
SK50-ER25-100	100	42	2.0 ~ 16
SK50-ER25-150	150
SK50-ER32-100	100	50	2.0 ~ 20
SK50-ER32-150	150
SK50-ER32-200	200
SK50-ER40-100	100	63	3.0 ~ 26
SK50-ER40-150	150

Features of er11 collet chuck:

1.Best T.I.R:runout is within 5μ(4D length).

2.SK collet taper:4°,increasing holding power,concentricity and rigidity. 3.May require additional processing Balance Grade in accordance with the customer,at an additional charge. 4.The balancing grade reaches the revoluting of G2.5 30000rpm.

Applications

The SK40 & ER11 Collet Chuck series is versatile and suitable for a wide range of machining tasks, including but not limited to:

Precision milling and drilling of small to medium-sized components

Turning and boring operations requiring high accuracy

CNC machining of delicate or intricate parts where minimal runout is essential

High-speed machining applications where rigidity and balance are crucial
