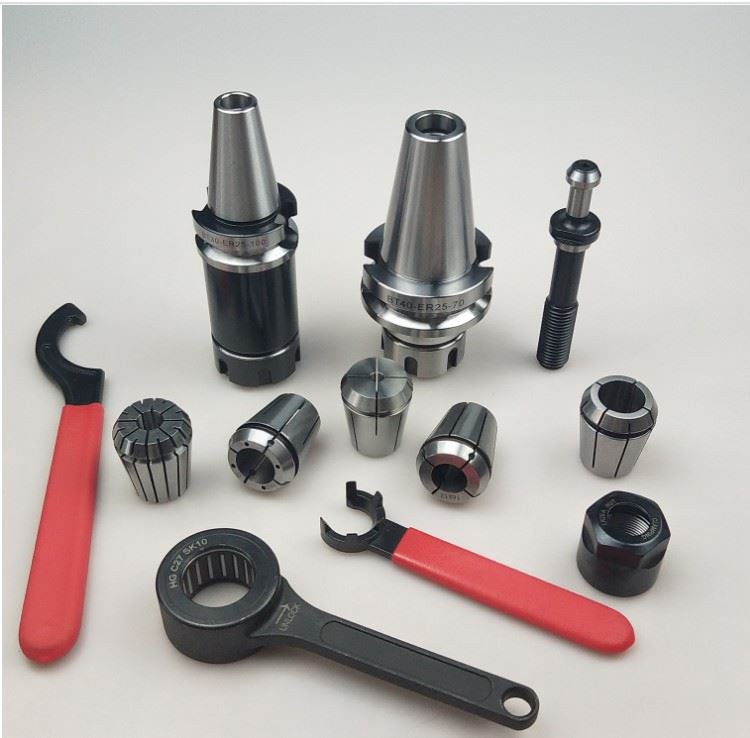

Er16 Collet Chuck
Er16 Collet Chuck
1.Product Name :er8 collet
2. Accurancy :0.005/0.008/0.015mm
3.Material :65Mn
4.Colour :Silver
Description
Er16 Collet Chuck
SPECIFICATIONS of er16 collet chuck :
1.Material 40Cr or 20CrMnTi cnc tool holder
2.HardnessHRC58-62
3.Form AD AD/B
4.accurracy 0.005mm/8000rpm
5.can be balanced to precision G6.3/12000RPM or G2.5/20000
OrderNo. BT*ER-L1 | D | D1 | OrderNo. BT*ER-L1 | D | D1 |
| BT30×ER16-70 | 28 | 31.75 | BT45×ER32-70 | 50 | 57.15 |
| BT30×ER20-70 | 34 | 31.75 | BT45×ER32-100 | 50 | 57.15 |
| BT30×ER25-70 | 42 | 31.75 | BT45×ER32-120 | 50 | 57.15 |
| BT30×ER32-70 | 50 | 31.75 | BT45×ER40-80 | 63 | 57.15 |
| BT30×ER40-80 | 63 | 31.75 | BT45×ER40-100 | 63 | 57.15 |
| BT40×ER16-70 | 28 | 44.45 | BT45×ER40-120 | 63 | 57.15 |
| BT40×ER20-70 | 34 | 44.45 | BT50×ER16-70 | 28 | 69.85 |
| BT40×ER20-100 | 34 | 44.45 | BT50×ER16-90 | 28 | 69.85 |
| BT40×ER20-150 | 34 | 44.45 | BT50×ER16-135 | 28 | 69.85 |
| BT40×ER25-60 | 42 | 44.45 | BT50×ER20-70 | 34 | 69.85 |
| BT40×ER25-70 | 42 | 44.45 | BT50×ER20-90 | 34 | 69.85 |
| BT40×ER25-90 | 42 | 44.45 | BT50×ER20-135 | 34 | 69.85 |
| BT40×ER25-100 | 42 | 44.45 | BT50×ER20-150 | 34 | 69.85 |
| BT40×ER25-150 | 42 | 44.45 | BT50×ER20-165 | 34 | 69.85 |
| BT40×ER32-70 | 50 | 44.45 | BT50×ER25-70 | 42 | 69.85 |
| BT40×ER32-100 | 50 | 44.45 | BT50×ER25-135 | 42 | 69.85 |
| BT40×ER32-150 | 50 | 44.45 | BT50×ER25-165 | 42 | 69.85 |
| BT40×ER40-70 | 63 | 44.45 | BT50×ER32-70 | 50 | 69.85 |
| BT40×ER40-80 | 63 | 44.45 | BT50×ER32-80 | 50 | 69.85 |
| BT40×ER40-120 | 63 | 44.45 | BT50×ER32-100 | 50 | 69.85 |
| BT40×ER40-150 | 63 | 44.45 | BT50×ER32-120 | 50 | 69.85 |
| BT45×ER16-70 | 28 | 57.15 | BT50×ER40-80 | 63 | 69.85 |
| BT45×ER20-70 | 34 | 57.15 | BT50×ER40-100 | 63 | 69.85 |
| BT45×ER20-100 | 34 | 57.15 | BT50×ER40-120 | 63 | 69.85 |
| BT45×ER25-70 | 42 | 57.15 | BT50×ER40-135 | 63 | 69.85 |
| BT45×ER25-90 | 42 | 57.15 | BT50×ER50-90 | 78 | 69.85 |
| BT45×ER25-100 | 42 | 57.15 | BT50×ER50-120 | 78 | 69.85 |
Related Products of er16 collet chuck：
Company Introduction:
We are focus on producing cemented carbide burrs ,carbide inserts ,carbide drills and carbide end mills ,ER collets ,cnc er chuck collet over 10years . We also supply cnc toolholder as well as famous brand products like korloy ,mitsubishi ,sumitomo ,seco ,sandvik .
Workshop:
We use ANCA and Walter machines to produce all carbide tools .
Quality Control and Warehouse :
Package and Shipping :
FAQ :
Q1:What are your main products ?
A1:Collet: ER Collet ,High precision collet ER8/ER1/ER16/er20/er25/er32/er40/er50 Collets,
ERC Collets, ERG Collets,R8 Collet,5C Collet ,SK Collet ,OZ /EOC Collets
TG50/TG75/TG100/TG150 Collet ,
DIN6343 Collet 163E/161E/173E/185E Collets ,
Milling Chuck set ,Straight Collets, etc.
Tool Holder Shanks: BT Tool Holders, DIN69871 SK Tool Holders, NT Tooling, CAT30 CAT40 CAT50
Tool Holders, HSK Tool Holders, DIN 69880 VDI Tool Holders, Morse Taper, Straight Shank Tool Holders, etc.
Accessories: Tool Holder Bushing, Nut and Spanner, Pull Stud, Tool Holder Locking Device,Machine
Vise, Live Center etc.
