Multi-purpose Tool Bar
Multi-purpose tool bar
The Anti-Vibration Carbide Milling Modular Shank is a versatile and durable tool designed for high-precision machining. Made from super-hard tungsten carbide, it offers excellent anti-vibration and high-temperature resistance, making it ideal for long deep hole processing. Its straight shank structure allows for adjustable processing depth, and the Multi-purpose tool bar design increases insert life and productivity.
Description
Anti-Vibration Carbide Milling Modular Shank
Our Anti-Vibration Carbide Milling Modular Shank is a high-performance tool made from super-hard tungsten carbide. It uses a unique carbide formula to achieve tenacity and durability, making it ideal for long deep hole processing (10D-12D). The straight shank structure allows for adjustable processing depth according to requirements.
The Multi-purpose tool bar features a special screw-tooth chain joint, which can be used for turning, milling, and ST boring. It increases the life of inserts and improves productivity. The tool bar screw thread is made by grinding process, ensuring a more stable and durable thread that's not easy to damage or collapse.

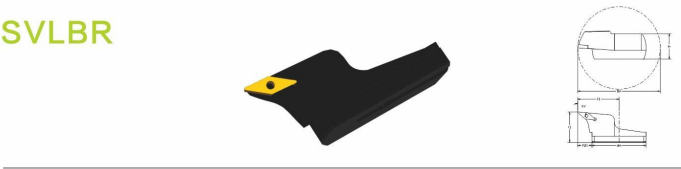

| Item code | Interface diameter (mm) | Dom径 (mm) | Dimensions (mm) (A x B x C) | Standard blade | Weight (kg) |
|---|---|---|---|---|---|
| CSA100-H100-SVLBR-16 | 80 | 100 | 37.5 x 45.7 x 0°/ +4° | VB..1604...3.9 | 3.9 |
| CSA40-H132-SVLBR-16-QC | 32 | 40 | 14.7 x 22.0 x 0°/ +6.5° | VB..1604...3.0 | 3.0 |
Note:
Short delivery time and long delivery time are indicated.
y: Rake angle (effective when using flat blade)
x: Clearance angle
Nm: Blade clamp torque
One Shank For All
All specifications have internal coolant holes for deep hole machining with good performance.
The straight shank structure allows for adjustable processing depth according to requirements.
The Multi-purpose tool bar increases the life of inserts and improves productivity.
The tool bar screw thread is made by grinding process, ensuring stability and durability.
