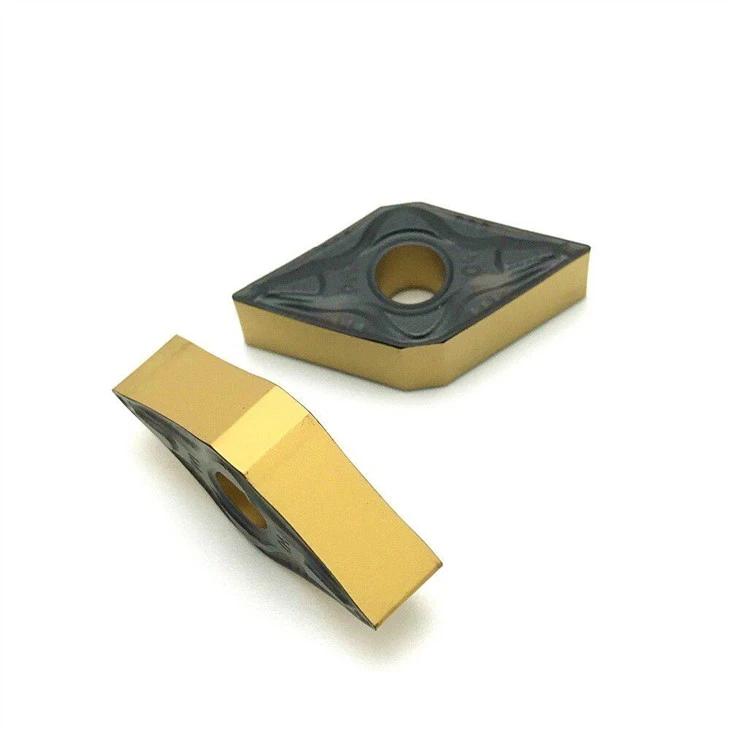

Insert Dnmg
Insert Dnmg
55° Rhombic insert
Double sided
Negative rake
M class
11mm or 15mm cutting edges
Available in a range of radius for finishing, general purpose and rough turning
Description
Insert Dnmg
Specifications of insert dnmg:
Professional Chip Breaker Design
Finishing
Special designed rake angle and cutting edge inclination; Sharp cutting edge, small cutting force;
Good machining surface quality; Suitable for stainless steel finishing.
SEMI-FINISHING
Semi-finishing chipbreaker for steel machining. Negative chamfer designation gives blade good strength;
Double chipbreaker lands, makes bigger chip control range.
ROUGHING
Three-dimension designed with double rake angle, wide margin and negative chamfer;
Wonderful blade intensity gives a longer tool life time; Suitable for steel roughing machining.
| Insert shape | Type | Size (mm) | ||||
| L | ΦI.C | S | Φd | r | ||
| DF Fine finishing | DNMG110404-DF | 11.6 | 9.525 | 4.76 | 3.81 | 0.4 |
| DNMG110408-DF | 11.6 | 9.525 | 4.76 | 3.81 | 0.8 | |
| DNMG110412-DF | 11.6 | 9.525 | 4.76 | 3.81 | 1.2 | |
| DNMG150404-DF | 15.5 | 12.7 | 4.76 | 5.16 | 0.4 | |
| DNMG150408-DF | 15.5 | 12.7 | 4.76 | 5.16 | 0.8 | |
| DNMG150412-DF | 15.5 | 12.7 | 4.76 | 5.16 | 1.2 | |
| DNMG150604-DF | 15.5 | 12.7 | 6.35 | 5.16 | 0.4 | |
| DNMG150608-DF | 15.5 | 12.7 | 6.35 | 5.16 | 0.8 | |
| DNMG150612-DF | 15.5 | 12.7 | 6.35 | 5.16 | 1.2 |
MDJNR/L12-3B | 0.75 | 0.75 | 1.00 | 4.5 | DN..332 | 2302-5014 2302-6014 | D1103B | NL-0414 | CL-12 | XNS-0829 | S2,S4 |
MDJNR/L12-4C | 0.75 | 0.75 | 1.00 | 5.0 | DN..432 | 2302-5016 2302-6016 | D1504B | NL-0617 | CL-30 | S2.5 S4 | |
MDJNR/L16-4C | 1.00 | 1.00 | 1.25 | 5.0 | DN..432 | 2302-5018 2302-6018 | |||||
MDJNR/L16-4D | 1.00 | 1.00 | 1.25 | 6.0 | DN..432 | 2302-5020 2302-6020 | |||||
MDJNR/L20-4E | 1.25 | 1.25 | 1.50 | 7.0 | DN..432 | 2302-5024 2302-6024 | |||||
MDJMR/L24-4F | 1.50 | 1.50 | 2.00 | 8.0 | DN..432 | 2302-5028 2302-6028 | |||||
Related Products of insert dnmg：
Company Introduction:
We are focus on producing cemented carbide burrs ,carbide inserts ,carbide drills and carbide end mills ,ER collets ,cnc er chuck collet over 10years . We also supply cnc toolholder as well as famous brand products like korloy ,mitsubishi ,sumitomo ,seco ,sandvik .
| LCMR160304-0300-MT,883 | LCMR160404-0400-MT,TGP25 |
| LCMR160304-0300-MT,CP500 | LCMR160408-0400-MT,883 |
| LCMR160304-0300-MT,TGP25 | LCMR1604M0-0400-MP,883 |
| LCMR1603M0-0300-MP,883 | LCMR1604M0-0400-MP,CP200 |
| LCMR1603M0-0300-MP,CP200 | LCMR1604M0-0400-MP,CP500 |
| LCMR1603M0-0300-MP,CP500 | LCMR1604M0-0400-MP,TGP25 |
| LCMR1603M0-0300-MP,TGP25 | LCMR160504-0500-FT,CP200 |
| LCMR160402-0400-FT,CP500 | LCMR160504-0500-FT,CP500 |
| LCMR160404-0400-FT,CP200 | LCMR160504-0500-FT,TGP25 |
| LCMR160404-0400-FT,CP500 | LCMR160504-0500-MC,CP600 |
| LCMR160404-0400-FT,TGP25 | LCMR160504-0500-MT,CP500 |
| LCMR160404-0400-MC,CP600 | LCMR160504-0500-MT,TGP25 |
| LCMR160404-0400-MT,CP500 | LCMR160508-0500-MT,883 |
| LCMR1605M0-0500-MP,CP200 | LCMR1605M0-0500-MP,883 |
Workshop:
We use ANCA and Walter machines to produce all carbide tools .
