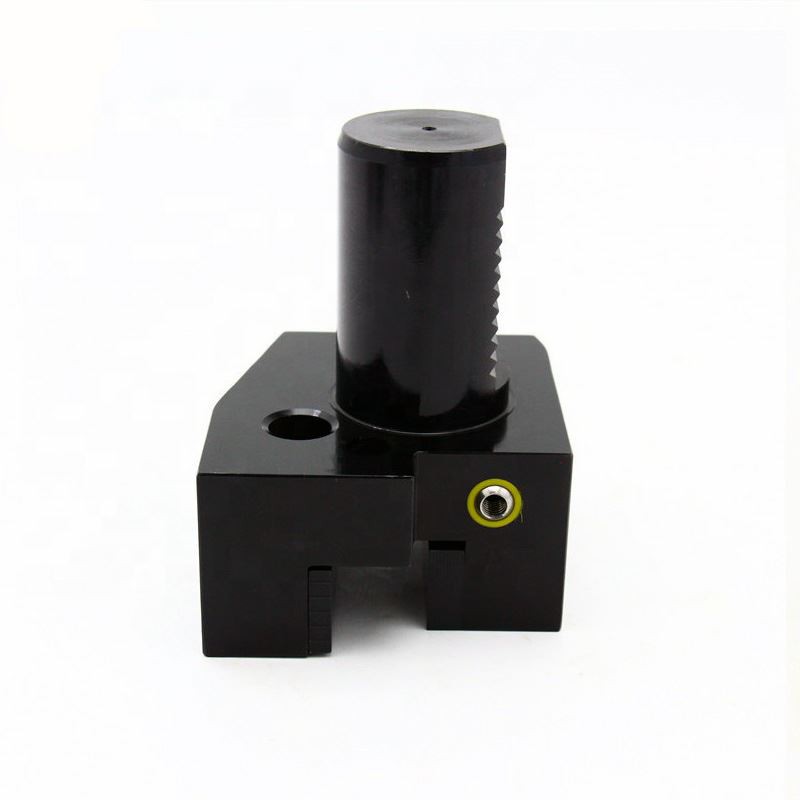

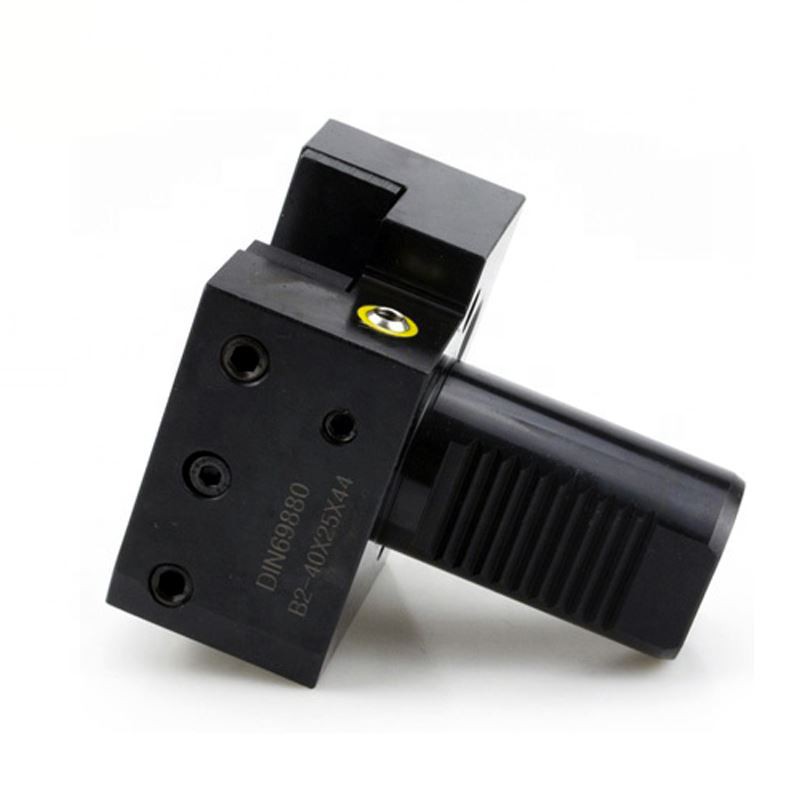

Vdi 40 Tool Holder

Name: Vdi 40 Tool Holder
Brand: Cutoutil
SKU: 164291375

Vdi 40 Tool Holder 1.Product Name :vdi 40 tool holder
2.Accurancy :0.005
3.Material :20crmoti
4.Colour :Silver or black

Send Inquiry

Description

Vdi 40 Tool Holder

Specifications of vdi 40 tool holder:

VDI Tool Holder is a Quick Change Tool holding System, it provides a fast and accurate way of affixing tools to the Turret;Tool Changes are performed in seconds. Boring Bar Holders can be Preset.

Metric sizes can be ordered directly, Inch sizes can be make by request.

High precision Vdi 40 Tool Holder E1/E2/E3/E4 type DIN69880 standard VDI toolholders E2-30x16

Vdi 40 Tool Holder is essential machine tool accessories for working center of CNC machine

Size	d1	d2	d3	MK	d4	h1	l1	l2
F30-MKD1	30	-	68	1	12.065	28	27	-
F30-MKD2	30	55	68	2	17.78	28	36	27
F30-MKD3	30	55	68	3	23.825	28	66	41
F40-MKD1	40	55	83	1	12.065	32.5	36	22
F40-MKD2	40	55	83	2	17.78	32.5	36	22
F40-MKD3	40	58	83	3	23.825	32.5	50	22
F40-MKD4	40	68	83	4	31.267	32.5	80	22
F50-MKD2	50	55	98	2	17.78	35	36	30
F50-MKD3	50	58	98	3	23.825	35	45	30
F50-MKD4	50	68	98	4	31.267	35	55	30
F50-MKD5	50	75	98	5	44.399	35	68	30
F60-MKD2	60	55	123	2	17.78	42.5	35	30
F60-MKD3	60	58	123	3	23.825	42.5	36	30
F60-MKD4	60	68	123	4	31.267	42.5	50	30
F60-MKD5	60	98	123	5	44.399	42.5	81	30

Vdi 40 Tool Holder for Cuting Off Tools

Quick Change Tapping Chuck with Length Compensation

VDI Tool Holder is a Quick Change Toolholding System, which provides a fast and accurate way of affixing tools to the Turret; Tool Changes are performed in seconds.

Metric sizes can be ordered directly, Inch sizes can be make by request.

Size	Collet Size	d	D	L	T	C
VDI20-TC312-55	1	19	38	70	7.5	7.5

VDI30-TC312-55	1	19	38	70	7.5	7.5
VDI30-TC820-77	2	31	54	95	12.5	12.5

VDI40-TC312-55	1	19	38	65	7.5	7.5
VDI40-TC820-77	2	31	53	93	12.5	12.5
VDI40-TC1433-110	3	48	78	166	22	22

VDI50-TC312-55	1	19	38	65	7.5	7.5
VDI50-TC820-77	2	31	53	93	12.5	12.5
VDI50-TC1433-110	3	48	78	166	22	22

1. The VDI tool holder is a quick change tool holder system, which provides a fast and accurate way to fasten the tool to the tool turret; the tool change is completed in seconds.

2. Equipped with a variety of tool holders, equipped with different types of tools and accessories.

3. We produce in accordance with the German DIN69880 standard, with advanced structure and convenient replacement, which can meet the processing needs of turning, drilling, boring, and milling.
