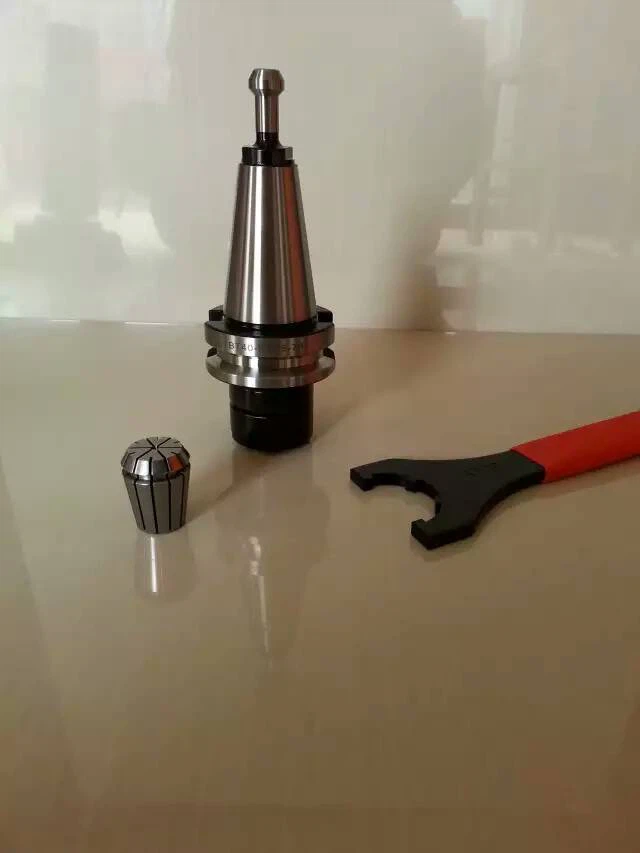

CAT 40 Tool Holders
CAT 40 Tool Holders
SK tool holder ,BT /SK face milling tool holder and BT /SK -APU drill chuck adaptor and ER collet SET ,straight collet and OZ collet and ER sealed collet are the most common clamping tools for machine accessories .
Description
CAT 40 Tool Holders

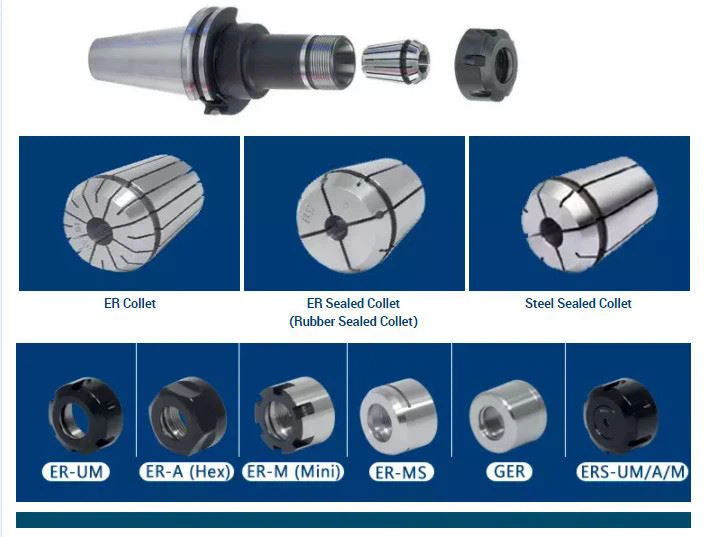

Cat 40 tool holders ,SK tool holder ,BT /SK face milling tool holder and BT /SK -APU drill chuck adaptor and ER collet SET ,straight collet and OZ collet and ER sealed collet are the most common clamping tools for machine accessories .
0.005mm high precision tool holder body ensure high quality . All BT tool holder are used for Mechanical spindle and cutting tools and other accessories. G6.3/12000 rpm balance and G2.5 /25000 rpm balance are available for any bt tool holder .
Descriptions of cat 40 tool holders :
Size | D | L | Capacity |
CAT40-ER16UM-2.5" | 32 | 2.5" | 1-10 |
CAT40-ER20UM-2.5" | 35 | 2.5" | 1-13 |
CAT40-ER25-2.5" | 42 | 2.5" | 2-16 |
CAT40-ER32-3" | 50 | 3" | 2-20 |
CAT40-ER40-3" | 63 | 3" | 3-26 |
CAT40-ER16UM-4" | 32 | 4" | 1-10 |
CAT40-ER20UM-4" | 35 | 4" | 1-13 |
CAT40-ER25-4" | 42 | 4" | 2-16 |
CAT40-ER32-4" | 50 | 5" | 2-20 |
CAT40-ER40-4" | 63 | 5" | 3-26 |
CAT40-ER16UM-6" | 32 | 6'' | 1-10 |
CAT40-ER20UM-6" | 35 | 6'' | 1-13 |
CAT40-ER25-6" | 42 | 6'' | 2-16 |
CAT50-ER20UM-2.5" | 35 | 2.5" | 1-13 |
CAT50-ER25-2.5" | 42 | 2.5" | 2-16 |
CAT50-ER16UM-4" | 32 | 4" | 1-10 |
CAT50-ER20-4" | 35 | 4" | 1-13 |
CAT50-ER25-4" | 42 | 4" | 2-16 |
CAT50-ER32-4" | 50 | 4" | 2-20 |
CAT50-ER40-4" | 63 | 4" | 3-26 |
CAT50-ER16UM-6" | 32 | 6'' | 1-10 |
CAT50-ER20UM-6" | 35 | 6'' | 1-13 |
CAT50-ER25-6" | 42 | 6'' | 2-16 |
CAT50-ER32-6" | 50 | 6'' | 2-20 |
CAT50-ER40-6" | 63 | 6'' | 3-26 |
CAT50-ER25-8" | 42 | 8" | 2-16 |
CAT50-ER32-8" | 50 | 8" | 2-20 |
CAT50-ER40-8" | 63 | 8" | 3-26 |
Cutoutil Hardware Tools Co.,LtD is a professional company specialized in cutting tools ,Diamond tools,Machine Accessories and measuring tools .
The scope of main products included turning tools milling tools, Carbide End Mills,Carbide Ball End Mills and carbide burrs ,Carbide Drills & milling cutter ,carbide inserts and ER collets ,chucks ,cat40 tool holders .
