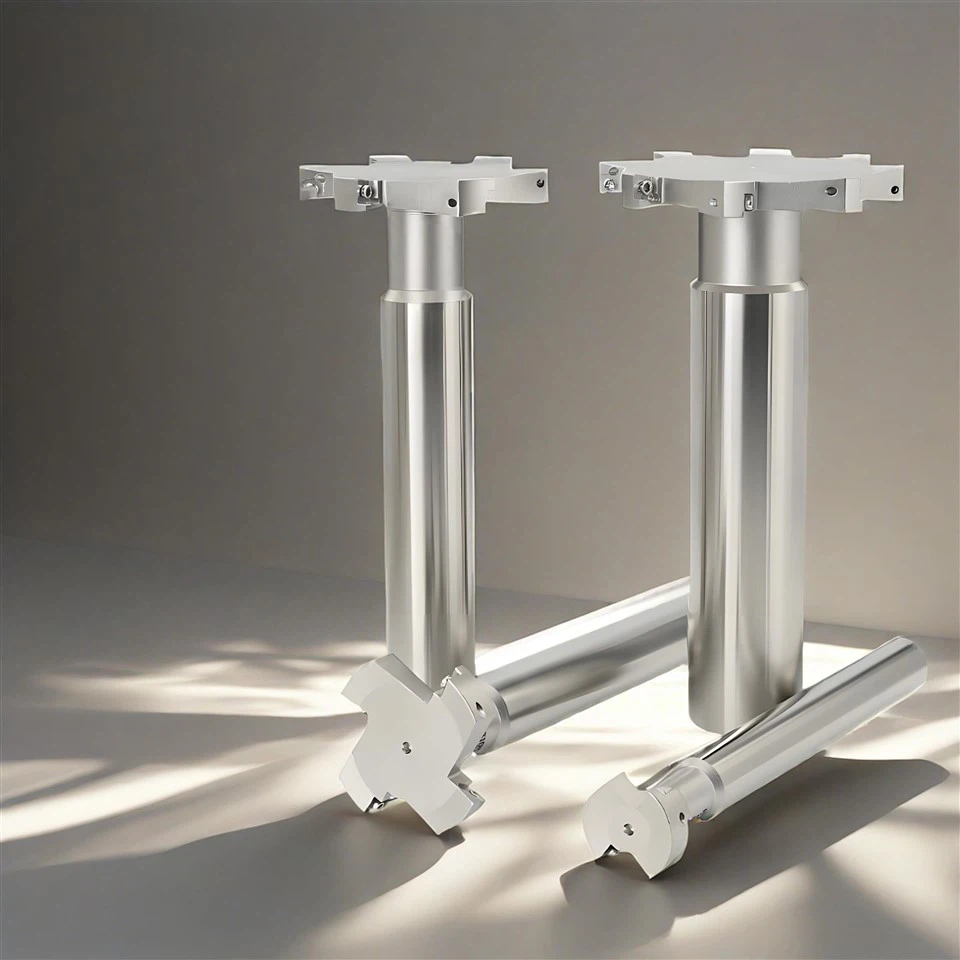

HTS-H10 T-Slot Tool Holder

HTS-H10 T-Slot Tool Holder

High-Precision T-Slot Milling Tool

The HTS-H10 T-Slot Tool Holder is a high-quality, durable solution designed for precision T-slot machining in CNC operations. Engineered with advanced carbide inserts, this tool holder ensures optimal cutting performance, excellent dimensional accuracy, and extended tool life. Ideal for machining steel, stainless steel, cast iron, and aluminum, it is widely used in automotive, aerospace, and industrial manufacturing sectors.



Key Features

High-Precision Design: Ensures consistent slot accuracy and smooth surface finish.

Robust Construction: Durable tool holder body minimizes vibration and chatter during operation.

Versatile Applications: Compatible with standard T-slot inserts for quick tool changes and adjustments.

Extended Tool Life: Made with premium carbide inserts for superior wear resistance.

Product Specifications

Model	Blade Number	D (mm)	d (mm)	d1 (mm)	L (mm)	L1 (mm)	AP (mm)
HTS-C14-D20-H10-150L-2T	2	20	14	12.5	150	32	10
HTS-C16-D25-H10-150L-2T	2	25	16	14	150	33	10
HTS-C16-D30-H10-150L-4T	4	30	16	15.5	150	33	10
HTS-C20-D35-H10-150L-4T	4	35	20	19.5	150	34	10
HTS-C20-D40-H10-150L-4T	4	40	20	19.5	150	34	10
HTS-C20-D50-H10-150L-4T	4	50	20	19.5	150	34	10
HTS-C25-D60-H10-150L-6T	6	60	25	24.5	150	36	10
HTS-C25-D65-H10-150L-6T	6	65	25	24.5	150	36	10
HTS-C32-D70-H10-150L-8T	8	70	32	31.5	150	36	10
HTS-C32-D80-H10-150L-8T	8	80	32	31.5	150	36	10
HTS-C32-D100-H10-150L-10T	10	100	32	31.5	150	36	10



Compatible Inserts

Model	Insert	Insert Screw	Wrench
HTS-H10	CCMT060204	M2.5*6	T8



Applications

T-Slot Machining: Ideal for creating precise T-slots in various materials.

High-Speed Machining: Suitable for CNC milling machines and machining centers.

Industrial Use: Widely used in automotive, aerospace, mold making, and general engineering applications.



Benefits

Time Efficiency: Reduces cycle time with high-speed machining capabilities.

Cost-Effective: Longer tool life and reduced downtime due to minimal wear.

Versatility: Compatible with carbide inserts from leading brands like MITSUBISHI.



Technical Advantages

Precision Engineering: Tight tolerance control ensures high-quality slots every time.

Balanced Design: Minimizes vibration and chatter for smoother operation.

Easy Maintenance: Simple insert replacement and adjustment with standard tools.



Order Information

For bulk orders or custom specifications, please contact our sales team for a detailed quotation.



Upgrade Your T-Slot Machining with HTS-H10 Tool Holders
Enhance precision and efficiency in your CNC operations with the HTS-H10 T-Slot Tool Holder-engineered for durability, accuracy, and compatibility with top-tier carbide inserts.
