A90.02 Corn Milling Cutter Bar



Product Description

The A90.02 Corn Milling Cutter Bar is designed for efficient milling operations in CNC machining. This tool comes in full power (HP) and half power (MP) types to accommodate different machining requirements. The full power type is suitable for heavy-duty cutting, while the half power type offers flexibility for various cutting conditions. The tool features a robust design that ensures maximum rigidity and durability, minimizing tool deflection and maximizing material removal rates.



Features

Full Power & Half Power Options: Choose between HP and MP types based on your machining needs.

High Rigidity Design: Ensures stable performance and reduces tool vibration during heavy cutting.

Efficient Material Removal: Optimized cutting geometry for high metal removal rates.

Wide Application Range: Suitable for various materials including steel, stainless steel, cast iron, and non-ferrous metals.

Compatibility: Works with inserts from major brands like Sandvik, Iscar, ZCC, Korloy, Seco, Walter, and more.

Precision Machining: Delivers accurate cutting results for improved workpiece quality.

Durable Construction: Engineered to withstand high cutting forces and demanding machining conditions.



Specifications

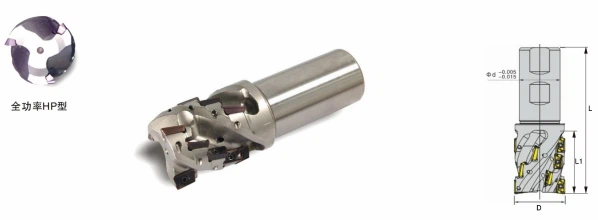

Full Power Type (HP)

Model	Blade Number	D (mm)	d (mm)	L1 (mm)	L (mm)	Insert	Screw	Wrench
A90.02-12020HP-1D-C20-2Z	2	20	20	18	80	ADMX1204□□R	M2.5X6XD3.6	T8
A90.02-12025HP-1.5D-C25-2Z	2	25	25	26	100	ADMX1204□□R	M2.5X6XD3.6	T8
A90.02-12025HP-1.5D-C25-2Z	2	25	25	26	105	ADMX1204□□R	M2.5X6XD3.6	T8
A90.02-12032HP-1D-C32-3Z	3	32	32	34	105	ADMX1204□□R	M2.5X6XD3.6	T8
A90.02-12032HP-1.5D-C32-3Z	3	32	32	50	120	ADMX1204□□R	M2.5X6XD3.6	T8
A90.02-12040HP-1D-C32-3Z	3	40	32	40	115	ADMX1204□□R	M2.5X6XD3.6	T8
A90.02-12040HP-1.5D-C32-3Z	3	40	32	58	130	ADMX1204□□R	M2.5X6XD3.6	T8

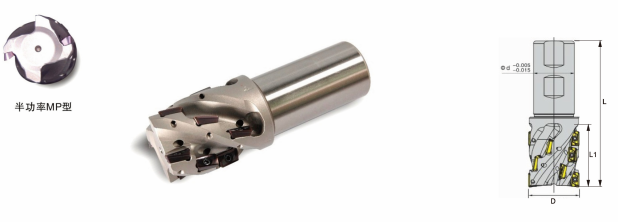

Half Power Type (MP)



Model	Blade Number	D (mm)	d (mm)	L1 (mm)	L (mm)	Insert	Screw	Wrench
A90.02-12020MP-1.5D-C20-2Z	2	20	20	31	95	ADMX1204□□R	M2.5X6XD3.6	T8
A90.02-12025MP-1.5D-C25-2Z	2	25	25	38	110	ADMX1204□□R	M2.5X6XD3.6	T8
A90.02-12032MP-1D-C32-3Z	3	32	32	36	105	ADMX1204□□R	M2.5X6XD3.6	T8
A90.02-12032MP-1.5D-C32-3Z	3	32	32	49	120	ADMX1204□□R	M2.5X6XD3.6	T8
A90.02-12040MP-1D-C32-3Z	4	40	32	43	115	ADMX1204□□R	M2.5X6XD3.6	T8
A90.02-12040MP-1D-C32-4Z	4	40	32	58	130	ADMX1204□□R	M2.5X6XD3.6	T8



Applications

Ideal for milling operations in various industries including automotive, aerospace, and general engineering. Suitable for machining different materials such as steel, stainless steel, cast iron, and non-ferrous metals.



Ordering Information

When placing an order, please specify the model number, required quantity, and any specific insert preferences.



Company Information

Cutoutil is a leading exporter of CNC cutting tools, tool inserts, and CNC accessories. We specialize in providing high-quality tools that meet international standards, with a wide range of products compatible with major brands like Sandvik, Iscar, ZCC, Korloy, Seco, and Walter. Our commitment to excellence ensures that we deliver reliable and efficient machining solutions to customers worldwide.

Visit our website at www.cutoutiltools.com for more information and to view our complete product range.
