SDKT Insert video

SDKT Insert

SDKT Insert
1.Product Name :SDKT insert
2.Accurancy :0.005
3.Material :20crmoti
4.Colour :Silver or black

Send Inquiry

Description

SDKT Insert

Specifications of SDKT insert :

fast feed blade：SDKT0935 SDHT1205 SDMT1205 SDMT1505

1. SDKT Insert  Steel processing: Steel

2. Die steel: P20718SKD11S136H

3. Hardened steel processing: HRC40-63Steel

4. Stainless steel: Stainless steel

5. Cast iron: Castiron

6. Titanium alloy: Titanium alloy

7. Heat-resistant alloy; Heat-resisting steel

8. SDKT Insert  programming R angle is R=2.0mm; sharp cutting, the best choice for titanium alloy processing.

9. SDH(M)T120520 programming R angle is R=4.0mm

10. HITACHI universal installation between SDMT120512 and SDMT150512.

Workpiece materialMaterial hardnessMaterial selectionLine speed Vc m/minFeed per tooth femm/t /Apmm
SDKT093508SDHT120520
carbon steel：S45C, S50C-220HBCP2630T CP2430100-250fz=0. 5-1.2 Ap=0.5-0.8fz=0. 5-1.8 Ap=0.5-1.0
alloy steel： 20CrMoTi,42CrMo-200HBCP2630T CP2430100-200fz=O. 5-1,0 Ap=040.6fz=O. 5-1.5 Ap=0.5-1.0
Metal mold steel： SKD61 (H13), SKD11350HBCP2630T CP2430100-150fz=0. 5-0.7 Ap=0.3-0.6fe=0. 5-1.2 Ap=0.5-1.0
die steel: P20,718, 738HRC28-32CP2630T CP2430100-180fz=0. 5-1.0 Ap=0.3・0.5fz=0. 5-1.2 Ap=0.5-0.8
Plastic mold steel and stainless baht: S136H,NAK80,4Crl3HRC30-40CP2630T CP2430100-150fz=O. 5-0.7 Ap=0.3-0.5fz=O. 5-1.2 Ap=0.5-1.0
hardened steel:SKD61 (H13), S136H, NAK80HRC40-50CP2630T CP1120H80-120fz=O. 1-0.2 Ap=0.15-0.4fz=O. 1-0.2 Ap=0.15-0,5
hardened steel:HRC50-62CP1120H50-80fz=O. 1-0.2 Ap=0.10-0.4fz=O. 1-0.2 Ap=0.15-0.5
Stainless steel:304, 316200HBCP2630T CP2430 CP1120H100-150fe=0. 3-0.5 Ap=0.3-0.6fz=0. 3-0.8 Ap=0.3-0.8
Superalloy:718HRC38-45CP1120H CP2630T60-120fz=0. 3-0.5 Ap=0.3-0.5fz=0. 3-0.6 Ap=0.3-0.6
Titanium alloy: Ti-6Al^V(Tc4)HRC40CP2640T30-80fz=O. 3-0.8 Ap=0.3-0.5fz=O. 3-1.0 Ap=0.3-0.8
grey cast iron: FC250, HT250-200HBCP2430120-220fz=0.5-1.5 Ap=0.5-1.0£z=O.5-1.8 Ap=0.5-1.2
Ductile Iron: FCD4O0,QT300,400,500,600-200HBCP2630T CP2430120-200fz=0.5-L5 Ap=0.5-0.8£z=0.5-1.8 Ap=0.5-1.2

Features:

1.The edge strength is high.

2. Wear resistance is very good.

3. The stability is very high.

4.The processing efficiency is extremely high: the performance exceeds that of imported top products of the same kind.

5.Processed objects: stainless steel, high mixed gold, die steel and ductile iron processing.

6.SDKT Insert  for Milling PVD Coated for General Use

WNMA080412KR3225WNMA080412-KR3225
WNMA080416KR3205WNMA080416-KR3205
WNMA080416KR3210WNMA080416-KR3210
WNMA080416KR3225WNMA080416-KR3225
WNMG060404KF3005WNMG060404-KF3005
WNMG060404KF3210WNMG060404-KF3210
WNMG060404KF3225WNMG060404-KF3225
WNMG060404LC1515WNMG060404-LC1515
WNMG060404MF1115WNMG060404-MF1115
WNMG060404MF1125WNMG060404-MF1125
WNMG060404MF2015WNMG060404-MF2015
WNMG060404MF2025WNMG060404-MF2025
WNMG060404MF5015WNMG060404-MF5015
WNMG060404PF1515WNMG060404-PF1515
WNMG060404PF1525WNMG060404-PF1525
WNMG060404PF5015WNMG060404-PF5015
WNMG060404SM1105WNMG060404-SM1105
WNMG060404WF1125WNMG060404-WF1125
WNMG060404WF1515WNMG060404-WF1515
WNMG060404WF1525WNMG060404-WF1525
WNMG060404WF2015WNMG060404-WF2015
WNMG060404WF3005WNMG060404-WF3005
WNMG060404WF3210WNMG060404-WF3210
WNMG060404WF3225WNMG060404-WF3225
WNMG060404WF5015WNMG060404-WF5015
WNMG060404WL1515WNMG060404-WL1515
WNMG060404XFGC15WNMG060404-XFGC15
WNMG060404XFGC30WNMG060404-XFGC30
WNMG060404XMGC15WNMG060404-XMGC15
WNMG060404XMGC30WNMG060404-XMGC30
WNMG060408KF3005WNMG060408-KF3005
WNMG060408KF3210WNMG060408-KF3210
WNMG060408KM3210WNMG060408-KM3210
WNMG060408KM3225WNMG060408-KM3225
WNMG060408KR3210WNMG060408-KR3210
WNMG060408KR3225WNMG060408-KR3225
WNMG060408MF1115WNMG060408-MF1115
WNMG060408MF1125WNMG060408-MF1125
WNMG060408MF2015WNMG060408-MF2015
WNMG060408MF2025WNMG060408-MF2025
WNMG060408MM1115WNMG060408-MM1115
WNMG060408MM1125WNMG060408-MM1125
WNMG060408MM2015WNMG060408-MM2015
WNMG060408MM2025WNMG060408-MM2025
WNMG060408MM2035WNMG060408-MM2035
WNMG060408MR2015WNMG060408-MR2015
WNMG060408MR2025WNMG060408-MR2025
WNMG060408MR2035WNMG060408-MR2035
WNMG060408PF1525WNMG060408-PF1525
WNMG060408PF5015WNMG060408-PF5015
WNMG060408QM1115WNMG060408-QM1115
WNMG060408QM235WNMG060408-QM235
WNMG060408SM1105WNMG060408-SM1105
WNMG060408WF1115WNMG060408-WF1115
WNMG060408WF1125WNMG060408-WF1125
WNMG060408WF1515WNMG060408-WF1515
WNMG060408WF1525WNMG060408-WF1525
WNMG060408WF2015WNMG060408-WF2015
WNMG060408WF3005WNMG060408-WF3005
WNMG060408WF3225WNMG060408-WF3225
WNMG060408WF5015WNMG060408-WF5015
WNMG060408WL1515WNMG060408-WL1515
WNMG060408WL2025WNMG060408-WL2025
WNMG060408WM3005WNMG060408-WM3005
WNMG060408WM3210WNMG060408-WM3210
WNMG060408WMX3205WNMG060408-WMX3205
WNMG060408WMX3225WNMG060408-WMX3225
WNMG060408XMGC15WNMG060408-XMGC15
WNMG060408XMRGC15WNMG060408-XMRGC15
WNMG060412KM3210WNMG060412-KM3210
WNMG060412KM3225WNMG060412-KM3225
WNMG060412KR3205WNMG060412-KR3205


Packages :

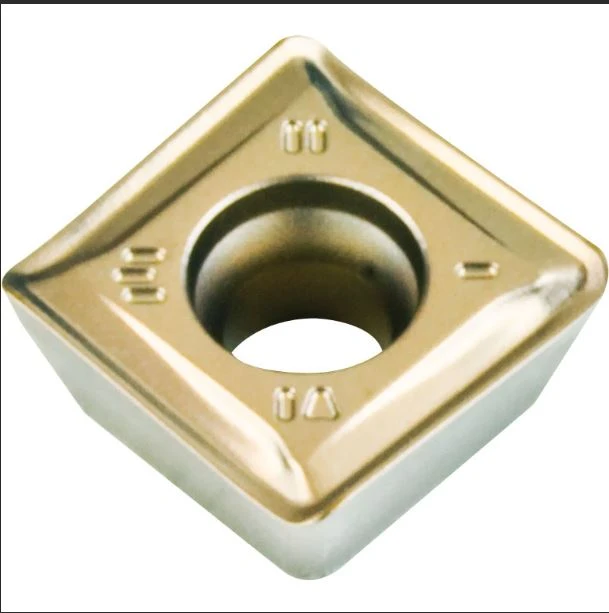

1538d2218713118c88d871759c906be

0b8ee45ce971392356b6448994f3510

China Low Price SDKT Insert Suppliers, Manufacturers, Factory - Made in China - CS CUTOUTIL

Related Products of SDKT insert：

WPS-


We have a type of products at a great sale:

CodeCode
90M62925ML005-MEGA-T
90M6R925ML010-MEGA-T
90M7925TL010-MEGA-T
90M71925TL015-MEGA-T
90M7R930060R020-MEGA
90ZF07930060R050-MEGA
90ZF08930080R020-MEGA
90ZQ01930080R050-MEGA
910020R020-MEGA930100R030-MEGA
910025R020-MEGA930100R100-MEGA
910030R010-MEGA930120R050-MEGA
910030R020-MEGA930120R100-MEGA
910035R020-MEGA93015-F
910040R020-MEGA930160R050-MEGA
910040R030-MEGA930160R100-MEGA
910040R050-MEGA930200R050-MEGA
910050R020-MEGA93020-F
910060R020-MEGA93030-F
910060R030-MEGA93040-F
910060R050-MEGA93060-F
910080R020-MEGA93080-F
910080R050-MEGA930RD11
910100R020-MEGA930RD13
910100R050-MEGA93100-F
910100R100-MEGA93120-F
910120R050-MEGA93160-F
910120R100-MEGA935L01
910L020-MEGA93L060-F
910L030-MEGA93L080-F
910L040-MEGA93L100-F
910L050-MEGA93L120-F
910L060-MEGA93L160-F
910L080-MEGA93L200-F
910L100-MEGA93XL120-F
910L120-MEGA93XL160-F
910L160-MEGA93XL200-F
910RS070-MEGA940ZC06
910RS090-MEGA950A0304
910RS110-MEGA950A0406
910RS130-MEGA950A0505
910RS170-MEGA950A0606
915008-MEGA-T950A0806
915L008-MEGA-T950A1008
915L010-MEGA-T950A1410
915XL006-MEGA-T950A1416
920ML006-MEGA-T950AF0810008
920ML010-MEGA-T950AF1010010
920ML015-MEGA-T950AF1210014
920ML020-MEGA-T950AIE0404
920TL020-MEGA-T950AIE0505


Company Introduction:

We are focus on producing cemented carbide burrs ,carbide inserts ,carbide drills and carbide end mills ,ER collets ,cnc er chuck collet over 10years . We also supply cnc toolholder as well as famous brand products like korloy ,mitsubishi ,sumitomo ,seco ,sandvik .

WPS

Workshop:

We use ANCA and Walter machines to produce all carbide tools .

WPS-

Quality Control and Warehouse :

warehouse

Package and Shipping :

package
