U Drill Cnc
U Drill Cnc
1.We produce indexable u drilling cnc for SOMT teagutec inserts WCMX SPGT carbide inserts.
2.u drill cnc drill bits can be produced as metric size and inch size.
3.Ni coating of u drill cnc indexable drilling make good surface looking.
Description

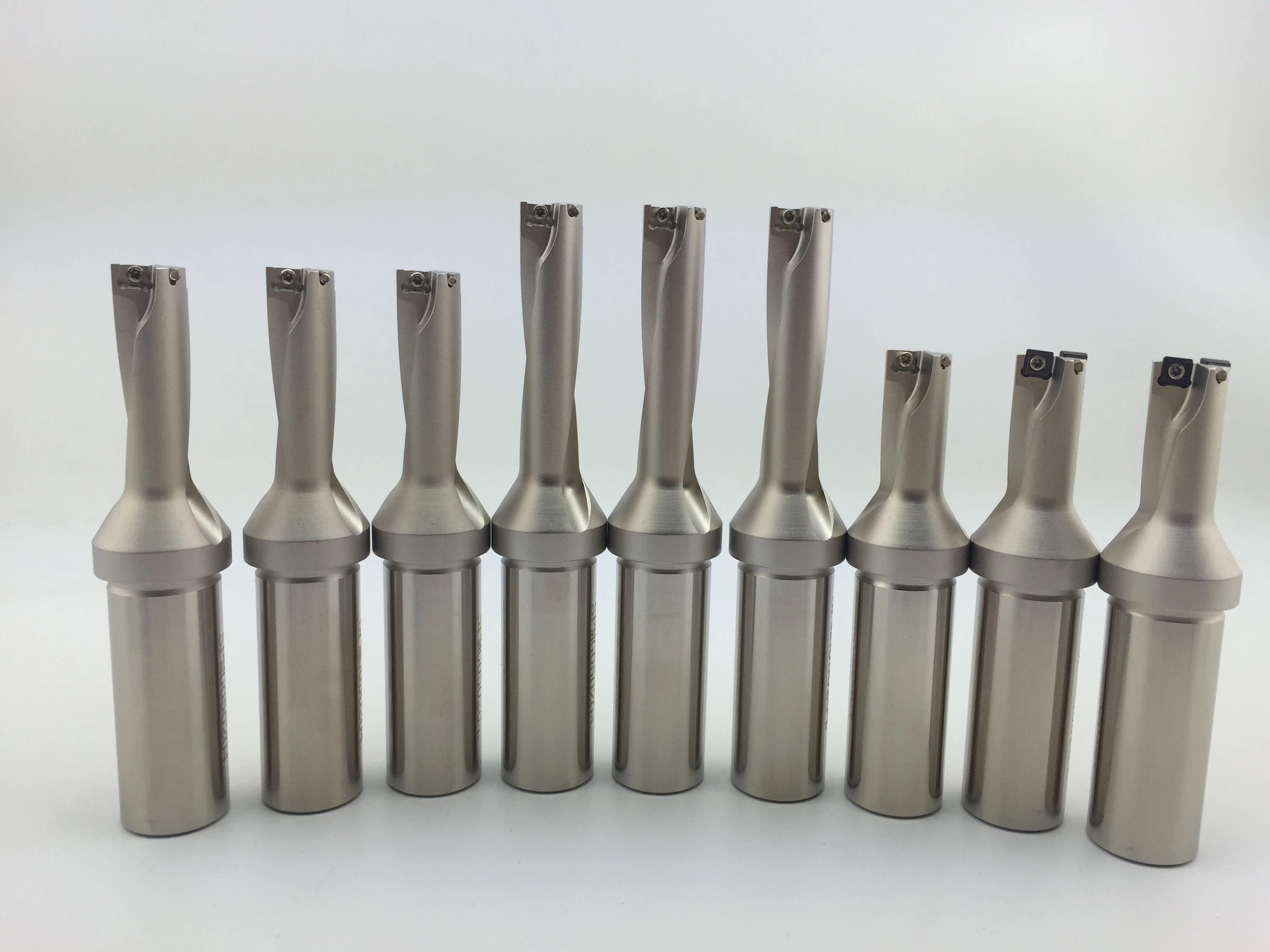

U Drill Cnc
Descriptions of u drill cnc :
Product Name | 2D/3D/4D/5D X Didameter u drill cnc |
Brand name | Cutoutil |
Tool Material | Steel tool 42CrMo |
Drill tool Type | Indexable drill bits |
Surface treatment | nickel plated |
Hardness | HRC45 |
Coolant | inner coolant |
Suitable inserts | SPMG SPMT WCMX SOMT |
Machining operation | deep hole drilling |
Workpiece | Steel,Hardened steel, Stainless steel |
OEM Service | Supply |
We produce indexable u drilling cnc for SOMT teagutec inserts WCMX SPGT carbide inserts .
刃徑 d»Dc | 柄徑 ①Ds | 型號 Specification/ltem | 庫存 Store | L | Q | Qy | 中心刀片 Insert | 螺釘 Screw | 扳手 Wrench | 適用刀片 Applicable Insert | 螺釘 Screw | 扳手 Wrench | Fig | ||
19 | C32-6D19-122SO04 | • | 200 | 122 | 140 | SOMT04T002 | M1.8x4 | ||||||||
20 | 6D20-128S005 | • | 206 | 128 | 146 | SOMT050204 | M2x5 | T6 | |||||||
21 | 6D21-134SO05 | 212 | 134 | 152 | |||||||||||
22 | 6D22-140SO06 | . | 218 | 140 | 158 | YL06 | T15 | ||||||||
23 | 6D23-146SO06 | . | 224 | 146 | 164 | ||||||||||
24 | 6O24-152SO06 | . | 230 | 152 | 170 | ||||||||||
25 | 6O25-158SO06 | . | 236 | 158 | 176 | ||||||||||
26 | 6D26-164SO06 | • | 245 | 164 | 185 | ||||||||||
27 | 6D27-170S006 | . | 251 | 170 | 191 | ||||||||||
6D | 28 | 6D28-176SO06 | . | 257 | 176 | 197 | SOMT060204 | M2.2 x 5 | T7 | 1 | |||||
29 | 32 | 6O29-182SO06 | • | 263 | 182 | 203 | 60 | ||||||||
30 | 6D30-188S006 | . | 269 | 188 | 209 | ||||||||||
31 | 6D31-194SO06 | . | 275 | 194 | 215 | ||||||||||
32 | 6D32-200S006 | . | 281 | 200 | 221 | ||||||||||
33 | 6D33-206SO06 | . | 289 | 206 | 229 | ||||||||||
34 | 6D34-212SO06 | . | 295 | 212 | 235 | YL08 | M3.5x8.5 | T15 | |||||||
35 | 6D35-218SO09 | . | 301 | 218 | 241 | ||||||||||
36 | 6D36-224SO09 | . | 307 | 224 | 247 | ||||||||||
37 | 6037-230S009 | • | 313 | 230 | 253 | ||||||||||
38 | 6DM-236SO09 | . | 319 | 236 | 259 | SOMT09T308 | M3.5 x 8.5 | T15 | |||||||
39 | 6O39-242SO09 | 325 | 242 | 265 | |||||||||||
40 | 6D40-248SO09 | • | 331 | 248 | 271 |
Features of u drill cnc :
1. Conversion connector, suitable for lathe cold processing.
2. The surface of the knife body coating, lubrication performance better.
3. The new blade body material, tool rigidity greatly improved.
4. Great bitter space, innovative flushing angle, excretion more smoothly.
5. Structural optimization, short chip performance better, cutting process vibration, processing accuracy is higher.
6.We produce indexable u drilling cnc for SOMT teagutec inserts WCMX SPGT carbide inserts .

| R220.69-02.00-XO16-6A | R220.69-03.00-18-8AN |
| R220.69-02.50-1.69-XO16-4A | R220.69-03.00-18L4BAN |
| R220.69-02.50-12-4AN | R220.69-03.00-18L4SAN |
| R220.69-02.50-12-6AN | R220.69-03.00-18M5AN |
| R220.69-02.50-12L4BAN | R220.69-03.00-2.79-XO16-5A |
| R220.69-02.50-12L4SAN | R220.69-03.00-RE-18.4AN |
| R220.69-02.50-16 | R220.69-03.00-XO16-6A |
| R220.69-02.50-18-5AN | R220.69-03.00-XO16-8A |
| R220.69-02.50-18-6AN | R220.69-04.00-12-12AN |
| R220.69-02.50-18L4BAN | R220.69-04.00-12-5AN |
| R220.69-02.50-18L4SAN | R220.69-04.00-12-8AN |
| R220.69-02.50-18M4AN | R220.69-04.00-16 |
| R220.69-02.50-18S4AN | R220.69-04.00-18-5AN |
| R220.69-02.50-2.24-XO16-5A | R220.69-04.00-18-7AN |
| R220.69-02.50-RE-12.4AN | R220.69-04.00-18-9AN |
| R220.69-02.50-RE-18.4AN | R220.69-04.00-18L5BAN |
| R220.69-02.50-XO16-5A | R220.69-04.00-18L5SAN |
| R220.69-02.50-XO16-6A | R220.69-04.00-RE-18.5AN |
| R220.69-03.00-10-10A | R220.69-04.00-XO16-10A |
| R220.69-03.00-12-10AN | R220.69-04.00-XO16-8A |
| R220.69-03.00-12-4AN | R220.69-05.00-18-11AN |
| R220.69-03.00-12-7AN | R220.69-05.00-18-8AN |
| R220.69-03.00-16 | R220.69-05.00-XO16-9A |
| R220.69-03.00-18-6AN | R220.69-06.00-18-12N |
| R220.69-8160-XO16-13A | R220.69-06.00-18-9N |
| R220.69-8200-12-12CN | R220.69-06.00-XO16-12A |
| R220.69-8200-18-12CN | R220.69-8160-12-10CN |
| R220.69-8200-XO16-12CA | R220.69-8160-18-10CN |
| R220.69-8250-12-16CN | R220.69-8160-18-12N |
| R220.69-8250-18-16CN | R220.69-8160-18-7N |
| R220.69-8160-XO16-11A | R220.69-8160-18-9N |
We produce indexable u drilling cnc for SOMT teagutec inserts WCMX SPGT carbide inserts .
Related products of wcmx spgt cnc drill :

Company Info & Office :

Workshop :

Warehouse & Quality Control :

Package &Shipping :

We normally ship U Drill Cnc via DHL ,Fedex,UPS .
FAQ :
Q1. Are you manufacturer? Do you have factory? We are professional manufacturer,have more than 10 years experience in this field.we also are trader. Our office located in changsha city ,Hunan province .
Q2: Do you accept trial order? Of course, we do. We will provide our very competitive price with the excellent quality.
Q3. Can you send products to our Forwarder in China? Yes,if you have Forwarder in China,we will glad to send products to him/her.
Q4.Can you produce Special carbide Tools ? Yes We can. We can produce as your drawing .
