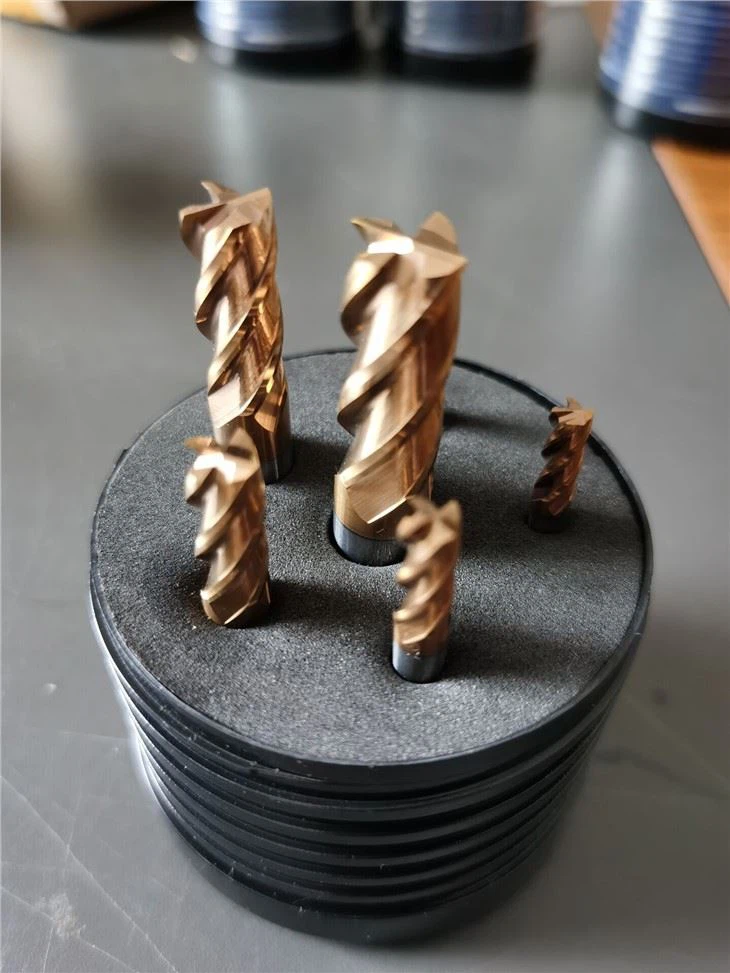

Carbide Milling Cutters

carbide milling cutters
is also known as a "carbide end mills".
The end of this tool is ground with a full radius equal to half of the tool diameter, and the edges are center cutting.
They can be single end or double end and they can be made from solid carbide or various compositions of high speed steel.

Send Inquiry

Description

Carbide Milling CuttersDescriptions of carbide milling cutters :

Carbide milling cutters can be used used for milling a large corner radius.

Raw Material

WF25 / K40

WC

88%

Co

12%

TRS

>4100N/mm2

Hardness

>92HRA

A.O.L

50mm-150mm

Grain size

0.6 μm

Upto

HRC58

Flutes No

4F

Coating

TiAlN-nano

Suitable for

Steel,stainless steel,nickel alloy,Titanium alloy,cast iron,plastic and other materials

Carbide milling cutters can be used used for milling a large corner radius,

Standard Sizes

Size

Flute Length of End Mills(mm)

Flat end

Ball Nose

Round nose

D1*D4*50

3

2

3

D1.5*D4*50

4

3

4

D2*D4*50

5

4

5

D2.5*D4*50

6

5

6

D3*D4*50

8

6

8

D3*D3*50

8

6

8

D3.5*D4*50

9

7

9

D4*D4*50

10

8

10

D1*D6*50

3

2

3

D1.5*D6*50

4

3

4

D2*D6*50

5

4

5

D2.5*D6*50

6

5

6

D3*D6*50

8

6

8

D3.5*D6*50

9

7

9

D4*D6*50

10

8

10

D6*D6*50

13

10

13

D6*D6*50

15

12

15

D7*D8*60

17

14

17

D8*D8*60

20

16

20

D10*75

25

20

25

D12*75

30

24

30

D14*100

45

28

35

D16*100

45

32

40

D18*100

45

36

40

D20*100

45

40

40

Flute Length of Extended End Mills(mm)

D3*D4*75

12

6

12

D4*D4*75

16

8

14

D5*D6*75

18

10

15

D6*D6*75

24

12

20

D8*75

25

16

25

D3*D4*100

12

6

15

D4*D4*100

20

8

15

D5*D6*100

20

10

20

D6*D6*100

30

12

25

D8*D8*100

35

16

30

D10*100

40

20

30

D12*100

45

24

35

D6*D6*150

45

12

40

D8*D8*150

50

16

45

D10*150

55

20

50

D12*150

55

24

55

D14*150

60

28

60

D16*150

70

32

65

D18*150

70

36

70

D20*150

70

40

70

B89{Q1`P07C]12Z8`Y%SV%9

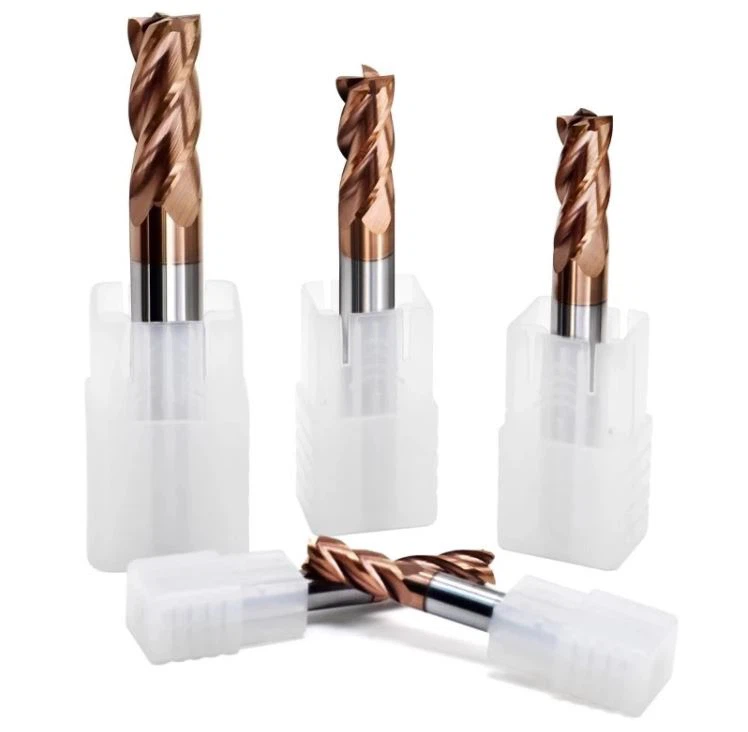

LI$GKIX})`_}}FECP6(GW)G
