Solid Carbide Burrs
Solid Carbide Burrs
1.We are professional manufacturer for producing carbide burrs ,carbide burr of all kinds of shape in metric size and inch size .
2.Solid carbide burrs clarify as SA ,SB,SC,SD,SG,SE,SF,SH... types .
3.Our solid carbide burrs was made by 100% Raw material
Description
Solid Carbide Burrs
Our solid carbide burrs was made by 100% Raw material
Product Descriptions :
Solid carbide burrs clarify as SA ,SB,SC,SD,SG,SE,SF,SH... types .

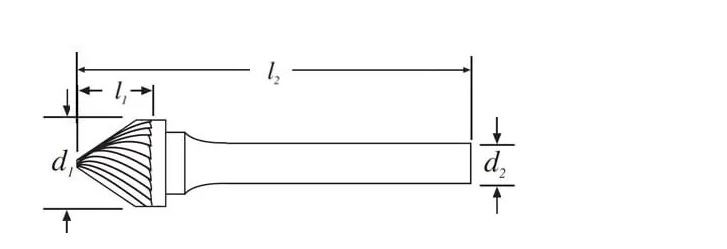

Metric Size :
| CODE | D1(mm) | L1(mm) | D2(mm) | L2(mm) |
| SK-42 | 3 | 1.5 | 3 | 38 |
| SK-1 | 6 | 3 | 6 | 50 |
| SK-3 | 9.5 | 5 | 6 | 50 |
| SK-5 | 12 | 6 | 6 | 50 |
| SK-6 | 16 | 8 | 6 | 53 |
| SK-7 | 19 | 9.5 | 6 | 54 |
| SK-9 | 25 | 12.7 | 6 | 57 |
Below carbide burr set is available for any sets you like .
Features of solid carbide burrs:
Solid carbide burrs has double cutter and single cutter .
1/8 dia. x 1-1/2 oal x 1/8 shk Double Cut, Carbide Burr90° Included Angle1/8 Flute Diameter x 1-1/2 Overall Length x 1/8 Shank DiameterDouble Cut
Non-standard sizes are available to produce as required sizes and drawing.
Used for various metal and non-metal process engraving, such as mold engraving, trimming of craft gifts
Related Products :
Company Introduction:
We are focus on producing cemented carbide burrs ,carbide inserts ,carbide drills and carbide end mills over 10years . We also supply cnc toolholder as well as famous brand products like korloy ,mitsubishi ,sumitomo ,seco ,sandvik .
| APKT 1003PDER-M:M8340 | APKT 1604PDR-GM:M9315 |
| APKT 1003PDER-M:M9325 | APKT 1604PDR-GM:M9325 |
| APKT 1003PDER-M:M9340 | APKT 1604PDR-GM:M9340 |
| APKT 1003PDFR-FA:HF7 | APKT 1604PDR-HM:8215 |
| APKT 1604PDR-GM:M8330 | APKT 1604PDR-HM:M5315 |
| APKT 1604PDR-HM:M8330 | APKT 1604PDR-HM:M8340 |
| APKT 160404-HM:M8340 | APKT 1604PDR-HM:M9325 |
| APKT 160416-HM:M8340 | APKX 1505PDER-F:8215 |
| APKT 160431-HM:M8340 | APKX 1505PDER-M:8215 |
| APKT 1604PDR-GM:M8340 | APKX 1505PDSR-R:8215 |
Workshop:
We use ANCA and Walter machines to produce all carbide tools .
Quality Control and Warehouse :
Package and Shipping :
FAQ :
Q1:What RPM speed should you use?
A1:The speed at which you use your carbide burr in your rotary tool will depend on the material you're using it on and the contour being produced but it's safe to say you do not need more than 35,000 RPM.
Q2:What Carbide Burr cut should you choose?
A2:Single cut (one flute) carbide burrs have a right handed (up cut) spiral flute. Single cut is used with stainless steel, hardened steel, copper, cast iron and ferrous metals and will remove material quickly with a smooth finish .Double cut also called Diamond Cut or Cross Cut (2 flutes cut across each other) and will leave a smoother finish than single cut due to producing smaller chips as they cut away the material.
| CODE | D1(mm) | L1(mm) | D2(mm) | L2(mm) |
| SK-42 | 3 | 1.5 | 3 | 38 |
| SK-1 | 6 | 3 | 6 | 50 |
| SK-3 | 9.5 | 5 | 6 | 50 |
| SK-5 | 12 | 6 | 6 | 50 |
| SK-6 | 16 | 8 | 6 | 53 |
| SK-7 | 19 | 9.5 | 6 | 54 |
| SK-9 | 25 | 12.7 | 6 | 57 |
