AJX Fast-forward To Face Milling Cutter - Precision And Efficiency Redefined
AJX Fast-forward to Face Milling Cutter - Precision and Efficiency Redefined
Our face milling cutters are compatible with a wide range of inserts, including:
GP2025
VP15TF
GK2015
Description

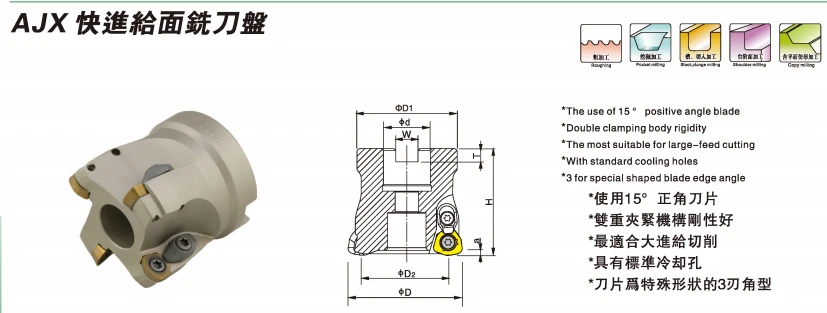

AJX Fast-forward to Face Milling Cutter - Precision and Efficiency Redefined
Introducing the AJX Fast-forward Face Milling Cutter, a cutting-edge tool designed for superior performance in your CNC machining operations. Manufactured by CS CUTOUTIL, a leading exporter of precision cutting tools, this face milling cutter is engineered to deliver exceptional results with high efficiency and durability. Ideal for large-feed cutting operations, it is compatible with inserts from top brands such as Sandvik, Kyocera, Iscar, Korloy, and Kennametal, offering a cost-effective alternative without compromising on quality.
Key Features
15° Positive Angle Blade: Optimized for smooth cutting and reduced friction, enhancing tool life and performance.
Double Clamping Body Rigidity: Ensures stability and precision during high-speed operations, minimizing vibrations.
Standard Cooling Holes: Facilitates efficient heat dissipation, maintaining optimal cutting temperatures and preventing tool wear.
Special Shaped 3-刃 Blade Edge: Designed for versatile cutting tasks, providing a balance between aggressive material removal and surface finish quality.
Technical Specifications
The AJX Fast-forward Face Milling Cutter is available in various sizes to accommodate different machining requirements. Below is a detailed list of our available models:
| Model Cat. No | D (mm) | D1 (mm) | D2 (mm) | d (mm) | H (mm) | W (mm) | T (mm) | a (mm) |
|---|---|---|---|---|---|---|---|---|
| AJX09-50-22-4T | 50 | 47 | 38.3 | 22 | 50 | 10.4 | 6.3 | 1.5 |
| AJX12-50-22-3T | 50 | 47 | 38.3 | 22 | 50 | 10.4 | 6.3 | 1.5 |
| AJX12-50-22-4T | 50 | 47 | 38.3 | 22 | 50 | 10.4 | 6.3 | 1.5 |
| AJX12-63-22-4T | 63 | 60 | 51.3 | 22 | 50 | 10.4 | 6.3 | 1.5 |
| AJX14-63-22-3T | 63 | 60 | 51.1 | 22 | 50 | 10.4 | 6.3 | 2 |
| AJX14-63-22-4T | 63 | 60 | 51.1 | 22 | 50 | 10.4 | 6.3 | 2 |
| AJX14-80-27-4T | 80 | 76 | 68.1 | 27 | 50 | 12.4 | 7 | 2 |
| AJX14-100-32-5T | 100 | 96 | 88.1 | 32 | 50 | 14.4 | 8 | 2 |
Accessories
To ensure seamless integration and operation, we offer a range of compatible accessories:
| Model Cat. No | Insert Type | Clamp Piece | Screw Type | Wrench Type |
|---|---|---|---|---|
| AJX09 | JDMW09T320ZDSR | CSY-15 | M3.5x8.5/M4x10 | T15 |
| AJX12 | JDMT120420ZDSR | AMS-4 | M4x10 | T15 |
| AJX14 | JDMW140520ZDSR-FT | AMS-5 | M5X12 | T20 |
Compatible Inserts
Our face milling cutters are compatible with a wide range of inserts, including:
GP2025
VP15TF
GK2015
These inserts are designed to provide optimal performance in various cutting conditions, ensuring versatility and efficiency.
Why Choose CS CUTOUTIL?
Cost-Effective Solutions: Our products offer a competitive edge in terms of price without sacrificing quality, making them an excellent choice for cost-conscious businesses.
High Compatibility: Our cutters are designed to be compatible with inserts from leading brands, providing flexibility and ease of use.
Commitment to Quality: We are dedicated to delivering tools that meet the highest standards of precision and durability.
Contact Us
For more information about our AJX Fast-forward Face Milling Cutters or to discuss your specific requirements, please visit our website at CS CUTOUTIL. Our team of experts is ready to assist you in finding the perfect solution for your machining needs.
