4N TE90 Double-sided Right-angle Shoulder Milling Cutter Head
4N TE90 Double-sided Right-angle Shoulder Milling Cutter Head
Equipped with high-quality cutter pads and a unique double-sided right-angle shoulder design, it offers excellent cutting performance.
Compatible with 4NKT060308R-M inserts from TAEGUTEC, this tool is ideal for various industrial applications.
Description
4N TE90 Double-sided Right-angle Shoulder Milling Cutter Head
Product Introduction
The 4N TE90 Double-sided Right-angle Shoulder Milling Cutter Head is a high-precision cutting tool designed for efficient and accurate machining. With its unique double-sided right-angle shoulder design, it offers excellent cutting performance and is suitable for a wide range of applications. The tool is equipped with high-quality cutter pads, providing better rigidity and durability during cutting. It is ideal for use in industries such as automotive, aerospace, and general manufacturing.
Product Features
Double-sided Right-angle Shoulder Design: The unique design allows for smoother cuts and better surface finish.
High-Quality Cutter Pads: These pads enhance the tool's rigidity and durability, making it suitable for heavy-duty cutting tasks.
High-Precision Machining: The tool is designed to deliver high-precision results, meeting the stringent requirements of modern manufacturing processes.
Versatile Applications: It can be used for various materials, including metals and alloys, making it a versatile choice for different industries.

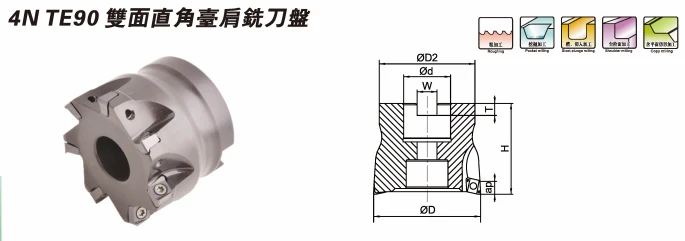

Product Specifications
| Model No. | Blade Number | D (mm) | D2 (mm) | d (mm) | H (mm) | W (mm) | T (mm) | ap (mm) |
|---|---|---|---|---|---|---|---|---|
| 4N TE90-4732-16-R | 4 | 32 | 16 | 16 | 32 | 8.4 | 5.6 | 6 |
| 4N TE90-5740-16-R | 5 | 40 | 35 | 16 | 40 | 8.4 | 5.6 | 6 |
| 4N TE90-6T50-22-R | 6 | 50 | 45 | 22 | 40 | 10.4 | 6.3 | 6 |
| 4N TE90-7T63-22-R | 6 | 63 | 48 | 22 | 40 | 10.4 | 6.3 | 6 |
Accessories
| Model No. | Insert | Insert Screw | Wrench |
|---|---|---|---|
| 4N TE90 | 4NKT060308R-M | M3*6.5 | T8 |
Insert Dimensions
| Insert Model | D1 (mm) | d1 (mm) | S (mm) | Brand |
|---|---|---|---|---|
| 4NKT060308R-M | 6 | 0.6 | 3.18 | TAEGUTEC |
