16 IR threading insert
16 IR threading insert
1. We are professional manfacuturer for all types carbide inserts range turning insert ,milling insert ,threading insert ,grooving inserts .
2.Blank material imported from Ceratizit .
3.Performance equal to Carmex.
4.Strict quality control and advanced test equipment.
Description
16 IR threading insert
We are professional manfacuturer for all types carbide inserts range turning insert ,milling insert ,threading insert ,grooving inserts .Blank material imported from Ceratizit .
Product Specifications :

| Grind type | Suppress Type | Pitch mm | Tooth depth |
16IR/L050ISO | 16IRM 050ISO | 0.50 | 0.29 |
16IR/L075ISO | 16IRM 075ISO | 0.75 | 0.43 |
16IR/L080ISO | 16IRM 080ISO | 0.80 | 0.46 |
16IR/L100ISO | 16IRM100ISO | 1.00 | 0.58 |
16IR/L125ISO | 16IRM 125ISO | 1.25 | 0.72 |
16IR/L150ISO | 16IRM150ISO | 1.50 | 0.87 |
16IR/L175ISO | 16IRM 175ISO | 1.75 | 1.01 |
16IR/L200ISO | 16IRM 200ISO | 2.00 | 1.15 |
16IR/L250ISO | 16IRM 250ISO | 2.50 | 1.44 |
16IR/L300ISO | 16IRM 300ISO | 3.00 | 1.73 |
16IR/L350ISO | 16IRM 350ISO | 3.50 | 2.02 |


Features of 16ir insert:
1.16ir is for iso threading tool holder
2.Blank material imported from Ceratizit .
3.Performance equal to Carmex.
4.Strict quality control and advanced test equipment.
Suitable threading tool holder for 16ir insert.

Code | Dimension | Insert | Order No. | Pitch | Screw | Clamp | Key | ||||
D | L | F | ■mats | ||||||||
S20P-THCNR16 | 20 | 170 | 13.7 | 24 | 16NR/16IR.. | 2656-0080 | |||||
S25R-THCNR16 | 25 | 200 | 16.3 | 29 | 16NR/16IR.. | 2656-0081 | LT16L-3.0 | CL16TH | |||
S32S-THCNR16 | 32 | 250 | 19.8 | 37 | 16NR/16IR.. | 2656-0082 | |||||
S40T-THCNR16 | 40 | 300 | 23.8 | 45 | 16NR/16IR.. | 2656-0083 | |||||
S32S-THCNR22 | 32 | 250 | 19.8 | 37 | 22NR/16IR.. | 2656-0084 | |||||
S40T-THCNR22 | 40 | 300 | 23.8 | 45 | 22NR/16IR.. | 2656-0085 | LT22L-4.0 | CL22TH | |||
S50T-THCNR22 | 50 | 300 | 28.8 | 55 | 22NR/16IR.. | 2656-0086 | LTM5x8 | CLSZ | E3 S3 | ||
S20P-THCNL16 | 20 | 170 | 13.7 | 24 | 16NL/16IR.. | 2656-0087 | |||||
S25R-THCNL16 | 25 | 200 | 16.3 | 29 | 16NL/16IR.. | 2656-0088 | LT16R-3.0 | CL16TH | |||
S32S-THCNL16 | 32 | 250 | 19.8 | 37 | 16NL/16IR.. | 2656-0089 | |||||
S40T-THCNL16 | 40 | 300 | 23.8 | 45 | 16NL/16IR.. | 2656-0090 | |||||
S32S-THCNL22 | 32 | 250 | 19.8 | 37 | 22NL/22IR.. | 2656-0091 | |||||
S40T-THCNL22 | 40 | 300 | 23.8 | 45 | 22NL/22IR.. | 2656-0092 | LT22R-4.0 | CL22TH | |||
S50T-THCNL22 | 50 | 300 | 28.8 | 55 | 22NL/22IR.. | 2656-0093 | |||||

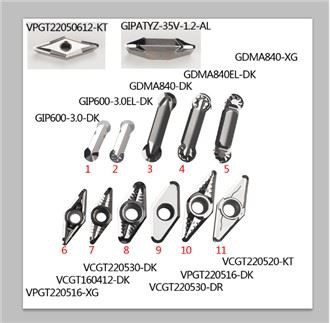

Related Products of 16ir insert:

Company Introduction:
We are focus on producing cemented carbide burrs ,carbide inserts ,carbide drills and carbide end mills over 10years . We also supply cnc toolholder as well as famous brand products like korloy ,mitsubishi ,sumitomo ,seco ,sandvik .
| JSB512020F2B.0Z2,SIRA | JSE512030F2C.0Z2,SIRA |
| JSB512030D2B.0Z2,SIRA | JSE512030F2C.3Z2,SIRA |
| JSB512040D2B.0Z2,SIRA | JSE512040D2C.0Z2,SIRA |
| JSB512050F2B.0Z2,SIRA | JSE512040F2C.0Z2,SIRA |
| JSB512060D2B.0Z2,SIRA | JSE512040F2C.3Z2,SIRA |
| JSB512080D2B.0Z2,SIRA | JSE512050D2C.0Z2,SIRA |
| JSB512100D2B.0Z2,SIRA | JSE512060D2C.0Z2,SIRA |
| JSB512120D2B.0Z2,SIRA | JSE512060D2C.3Z2,SIRA |
| JSE512020F2C.0Z2,SIRA | JSE512080D2C.0Z2,SIRA |
| JSE512020F2C.3Z2,SIRA | JSE512080D2C.3Z2,SIRA |
| JSE512021F2C.0Z2,SIRA | JSE512100D2C.0Z2,SIRA |
| JSE512030D2C.0Z2,SIRA | JSE512100D2C.3Z2,SIRA |

Workshop:
We use ANCA and Walter machines to produce all carbide tools .

Quality Control and Warehouse :

Package and Shipping :
FAQ :
Q1: Are you trading company or manufacturer ?
A1: We are factory for more than 10 years in CNC tool manufacturer.
Q2: How long is your delivery time?
A2: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q3: Do you provide samples ? is it free or extra ?
A3: YES We offer samples for free but you need to pay transport cost .
Q4: What is your terms of payment ?
A4: T/T 30% deposit,70% balance against B/L copy or 100% irrevocable LC at sight. More payment terms available(Paypal, Western Union).
Q5: Do you make OEM ?
A5: Yes, we do. OEM is accepted with your brand lase in the products by our laser machine and label of the OEM brand would be stuck on the box before goods shipped out.
